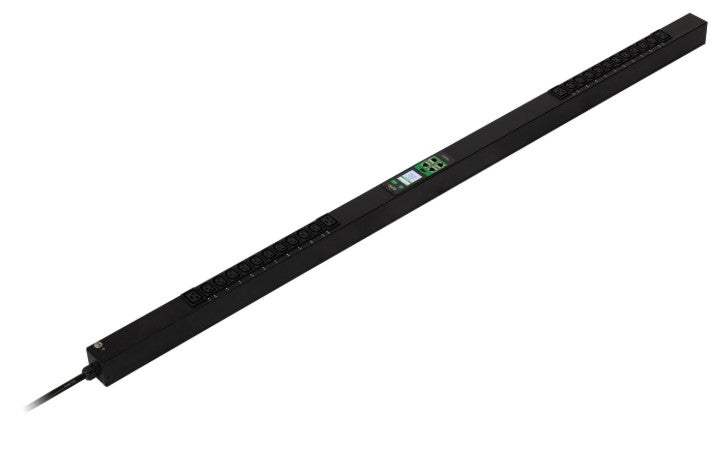

APC Easy PDU Switched Zero U 32A 230V(20)C13 (4)C19 IEC309
Sale price
$1,521.99
Regular price $1,725.99
Skip to product information

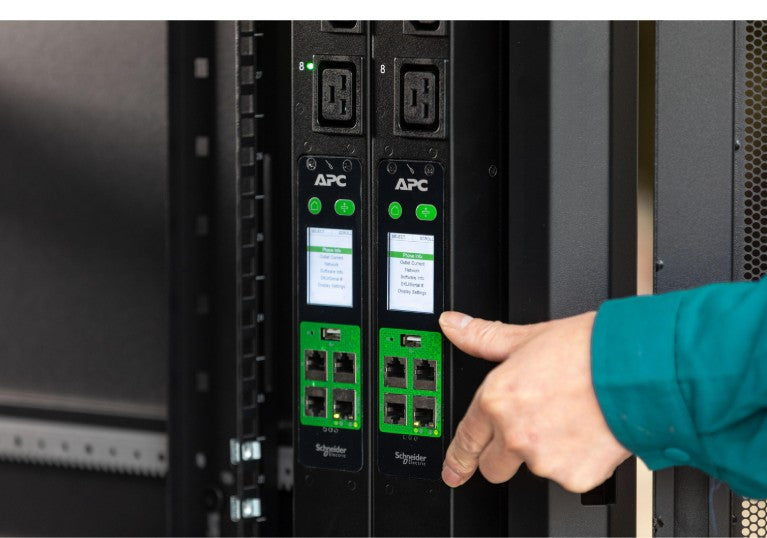

Schneider Easy Switched Rack PDU EPDU2132S is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip. EPDU2132S has IEC 60309 32A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. The green packaging includes cable, installation guide and horizontal mounting brackets for quick and easy mounting in the enclosure.
Colour
Black
Product or component type
PDU
PDU type
Switched
Cord length
2.99 m
Number of cables
1
Provided equipment
Installation guide
Complementary
Input Voltage
230 V 1 phase
Height
1650 mm
Width
56 mm
Output Voltage
230 V
Depth
62 mm
Product weight
6.65 kg
Mounting location
Side
Mounting preference
No preference
Input Plug Type
IEC 60309 32 A 2P + E
Mounting mode
Rack-mounted
Rack units
0U
Mounting position
Vertical
Input current limits
32 A
Load capacity
7360 VA
Network frequency
50/60 Hz
Outlet type and quantity
20 IEC 60320 C13
Environment
Product certifications
CE
UKCA
Ambient air temperature for operation
-5…50 °C
Relative humidity
5…95 %
Operating altitude
0...10000 ft
Ambient air temperature for storage
-25…65 °C
Storage Relative Humidity
5…95 %
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
12.6 cm
Package 1 Width
17 cm
Package 1 Length
181 cm
Package 1 Weight
8.15 kg
Contractual warranty
Warranty (in months)
12
