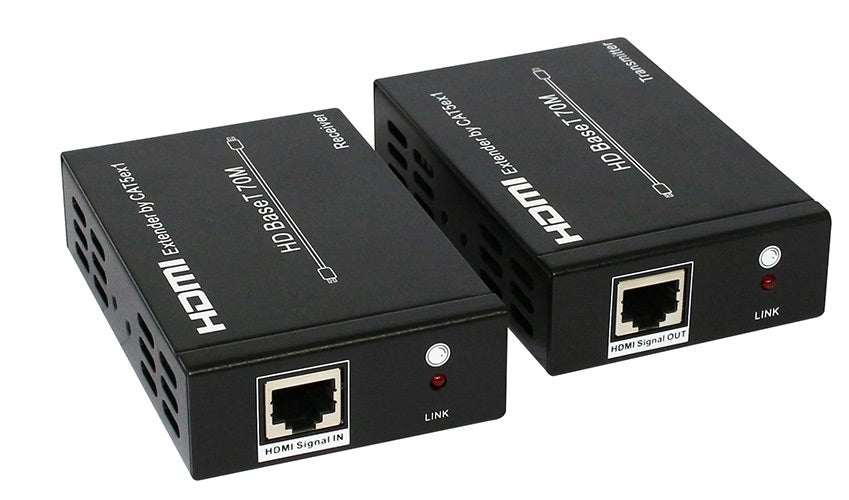

Astrotek HDMI Extender over RJ45 CAT5 CAT6 LAN Ethernet Network Converter Splitter for Foxtel Support 40m 4Kx 2K@30hz or 70m 1080p with 2 untis inside
The Astrotek HDMI Extender extends HDMI signals and bidirectional wideband infrared control signals to 70 meters (Cat6 cable up to 70 meters),converts HDMI signals to standard signals for HDBaseT and then transmits them via LAN cable. It can easily control signal source device or display device from a remote end through a bi-directional infrared interface. It supports RS-232 signal transparent transmission with a resolution of up to 4K x 2K @ 30Hz.
• Compliant with HDCP 2.2.
• Support POC (Power Over Cable) function
User Interface
Input HDMI Female
Output HDMI Female
Resolution
Transmission distance: over Cat6 network cables
*70M: 1080P @ 60Hz / 36bit; 3D 1080P @ 30Hz / 36bit;
*40M: 1080P @ 60Hz / 48bit; 1080P @ 120Hz / 24bit;
*3D 1080P @ 60Hz / 36bit; 4K x 2K @ 30Hz / 24bit
Package Includes
HDMI Extender, Power Adapter, Manual
Physical Characteristics
Colour Black
Warranty
1 Year
