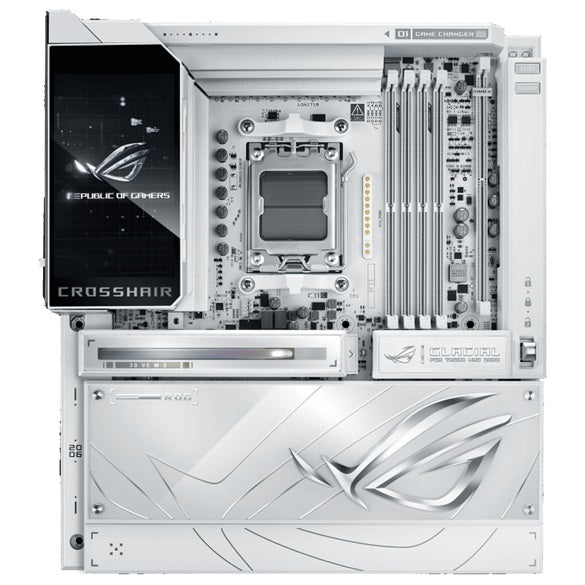

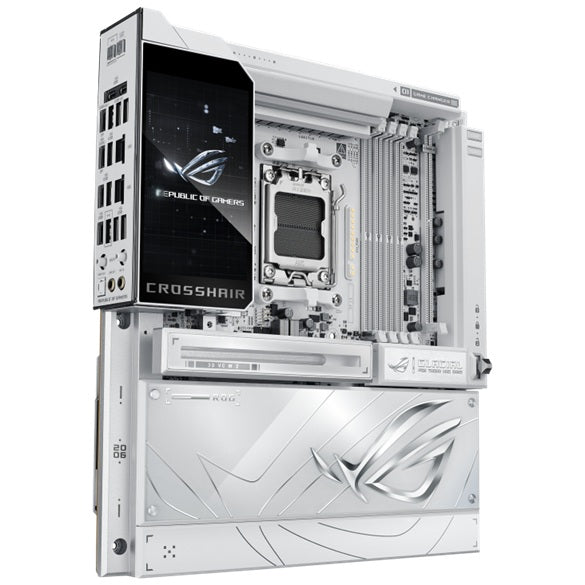

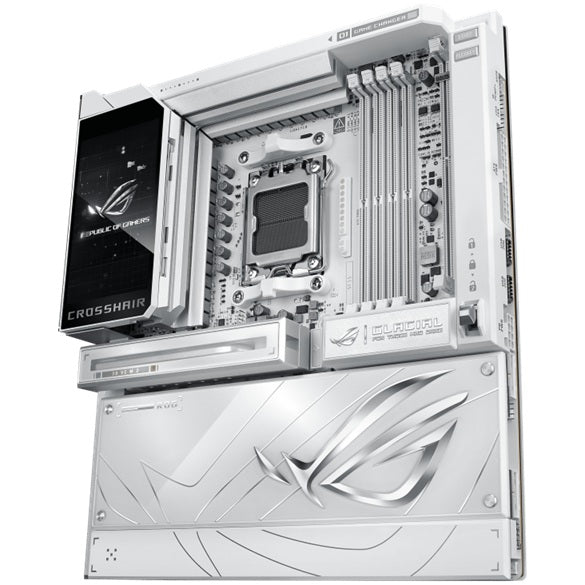

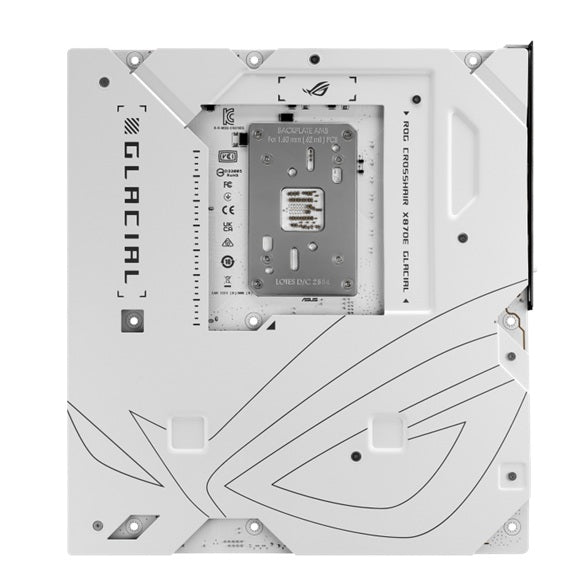

ASUS AMD ROG CROSSHAIR X870E GLACIAL, AM5, X870E, DDR5 256GB, PCIe 5.0, 7x M.2, Wi-Fi 7, Dual 10GbE, USB4, E-ATX, 2yr wty SPECIFICATION Model ROG CROSSHAIR X870E GLACIAL CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD X870E Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. ** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components. *** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/ Graphics 2 x USB4® (40Gbps) ports support USB Type-C® display outputs** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4a *** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* AMD Ryzen™ 8500 & 8300 Series Desktop Processors* Storage Supports up to 7 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors* AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* AMD Ryzen™ 8500 & 8300 Series Desktop Processors* AMD X870E Chipset ASMedia ASM1162 Controller RAID Support AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10* *SATA ports from ASM1162 cannot support RAID Ethernet 2 x Realtek 10Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4 (support LE Audio)*** *Wi-Fi features may vary depending on the operating system. USB Rear USB (Total 14 ports) Front USB (Total 12 ports) BIOS 2 x 64 MB (512Mb) Flash ROM, UEFI AMI BIOS Operating System Windows® 11 Form Factor E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
