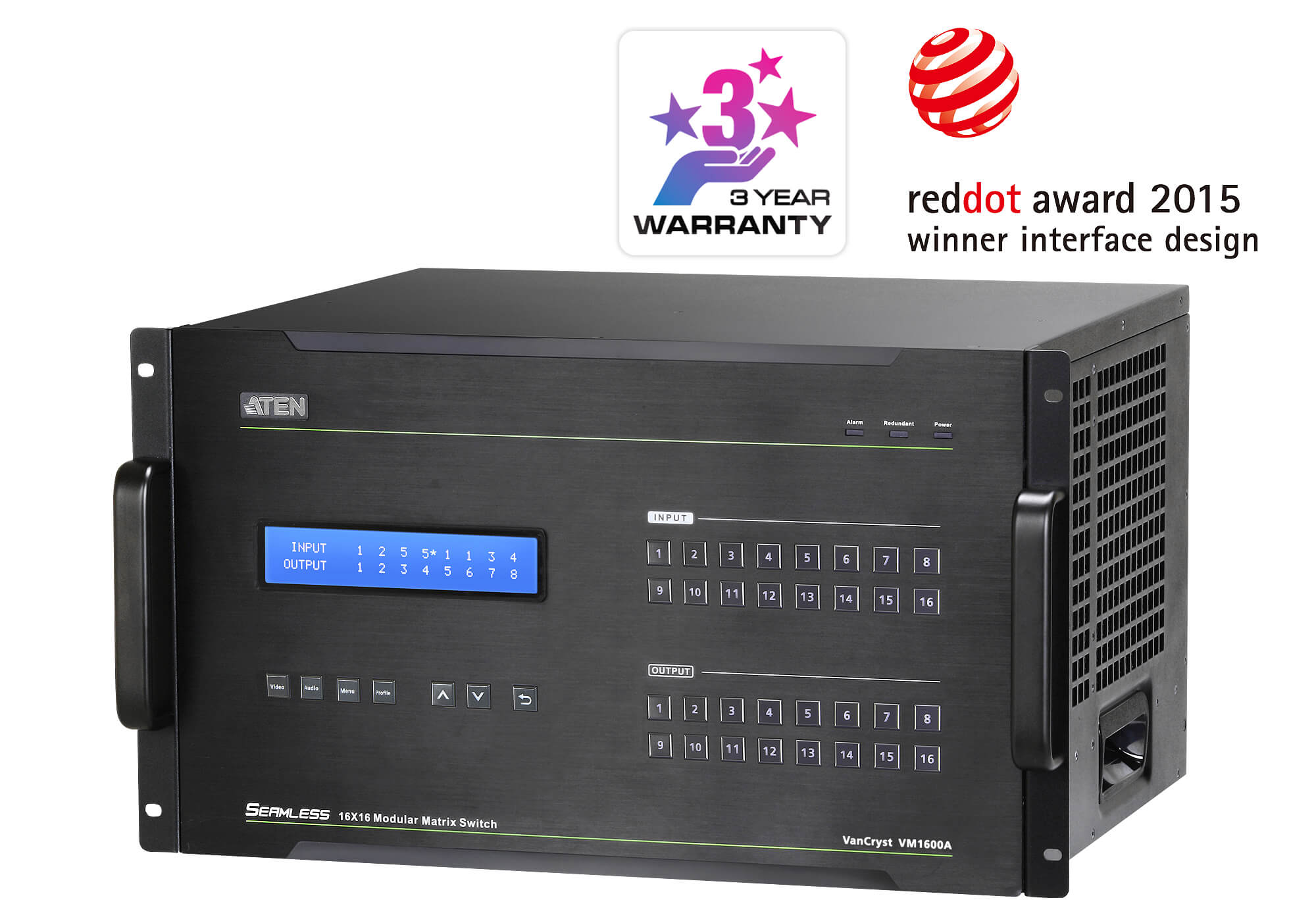

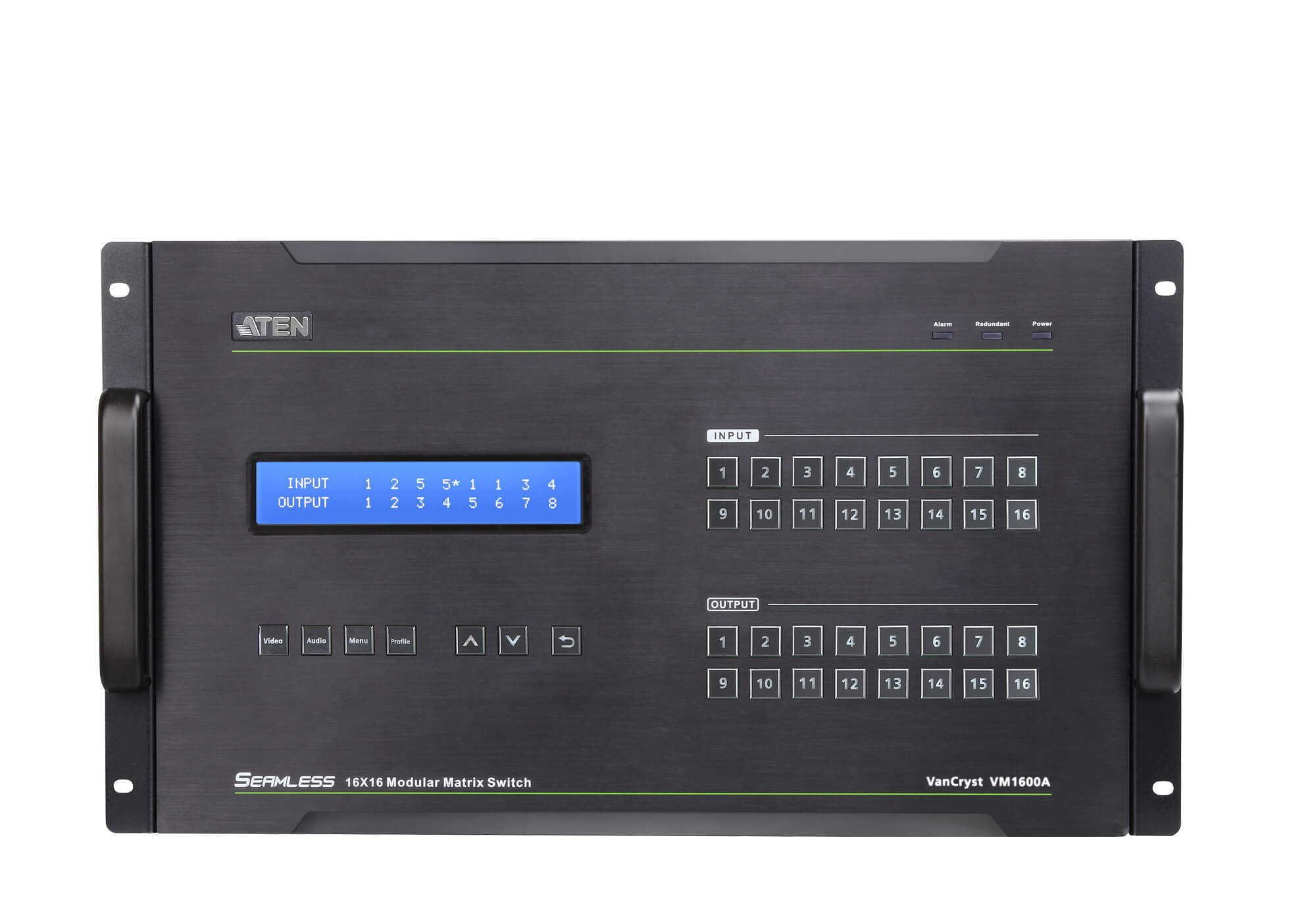

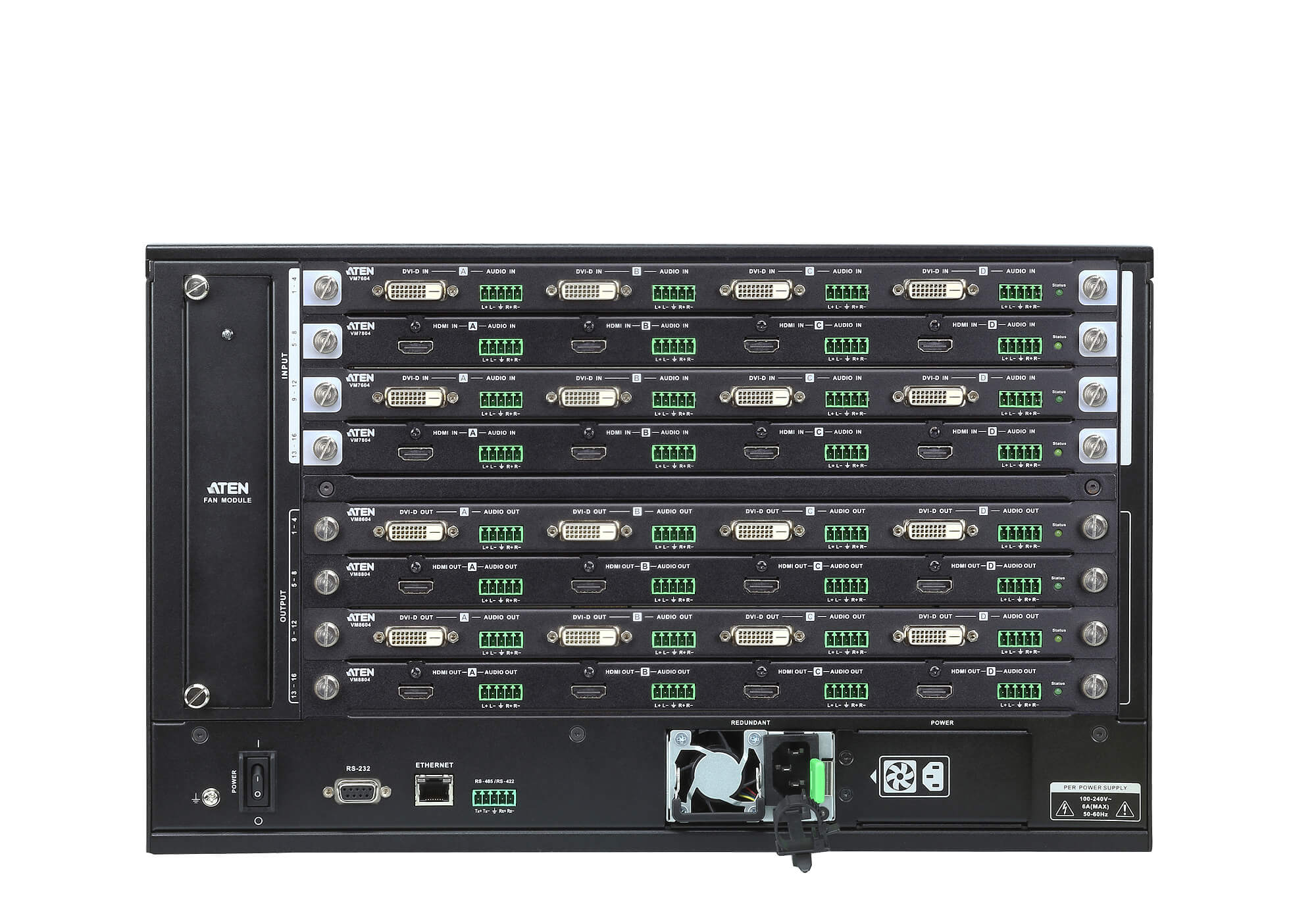

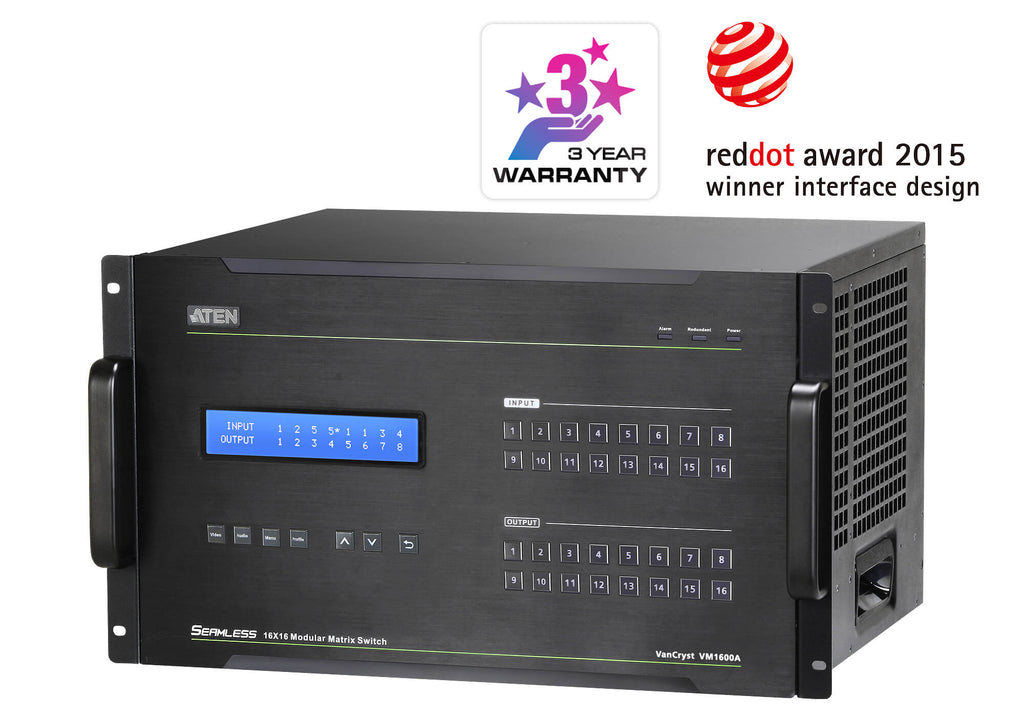

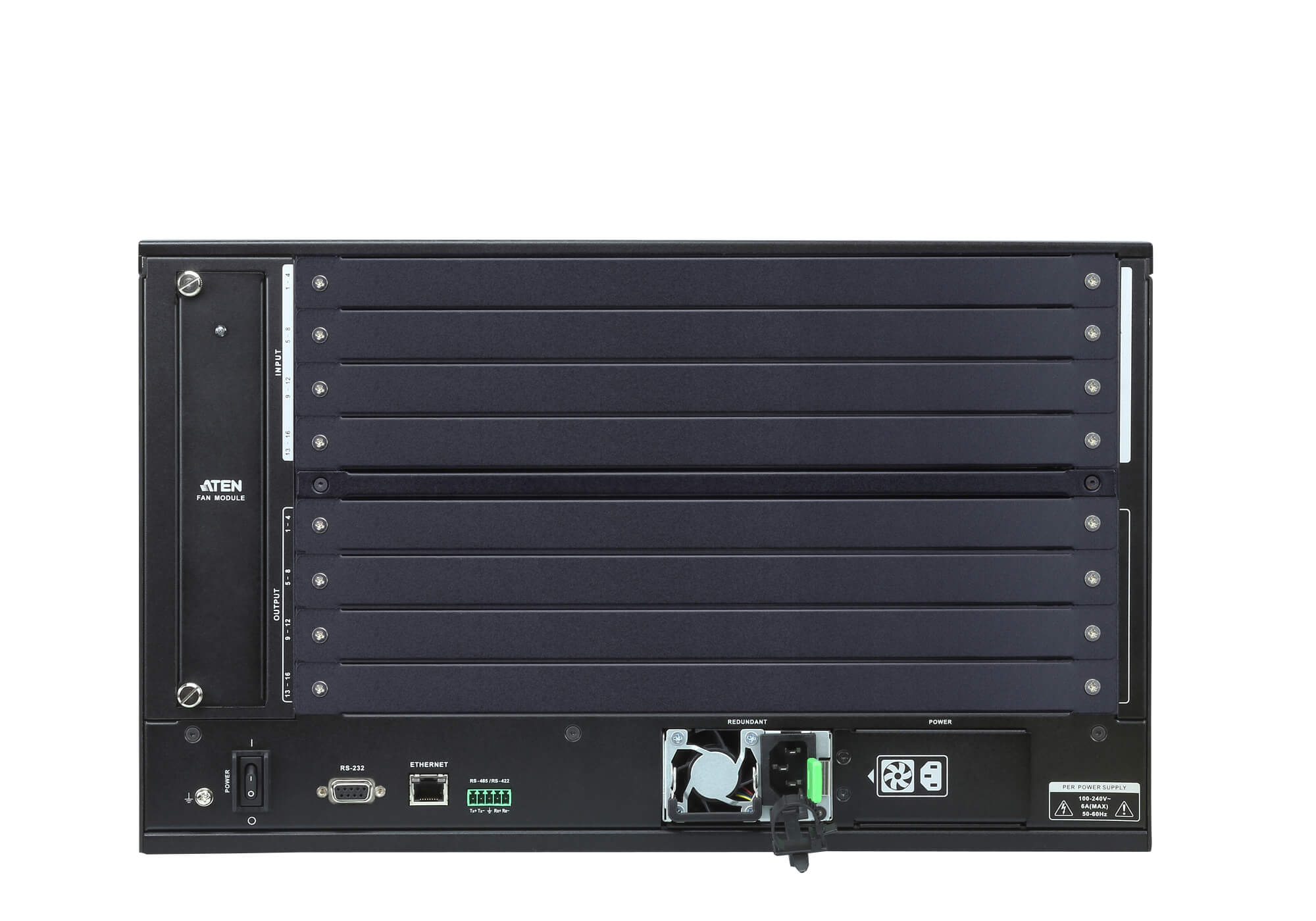

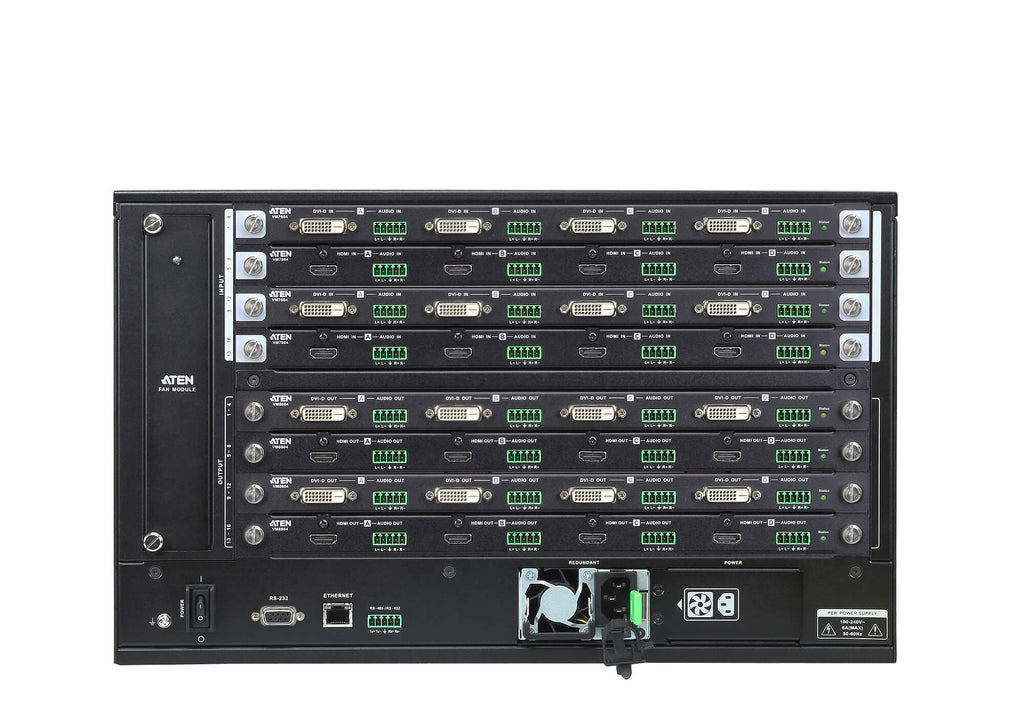

Aten 16x16 Modular Digital Matrix with Scaler, Seamless Switch, Hot-swappable Aten I/O boards, control via front-panel pushbuttons, RS232 and Ethernet (Telnet / Web GUI), supports Video Wall, EDID management and Calendar-based scheduling. Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards Optional redundant power supply for continuous operation Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI) Board Output 4 x Slot Board Input 4 x Slot Video Input Interfaces Depends on which I/O board is inserted Max. Data Rate 15.2 Gbps (3.8Gbps per Lane) Audio Input Depends on which Input board is inserted Output Depends on which Output board is inserted Control RS-232 Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole Ethernet Connector: 1 x RJ-45 Female EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) Connectors Power 1 x 3-Prong AC Socket Power Maximum Input Power Rating 100-240 VAC; 50/60Hz; 3/6 A Power Consumption AC110V:460W:166BTU AC220V:460W:156BTU Fan Airflow: 55.2 cfm Operating Voltage: 10.2 - 12VDC Operating Temp: -10 - 60°C Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 15.11 kg ( 33.28 lb ) Dimensions (L x W x H) 48.20 x 46.66 x 26.59 cm (18.98 x 18.37 x 10.47 in.) Rack Height (U Spaces) 6U Carton Lot 1 pc Package Contents 1x VM1600A Modular Matrix Switch 1x Power Cord 1x Terminal Block connector 1x Fan Module (pluggable) 1x Power Module (pluggable) 1x User Instructions
