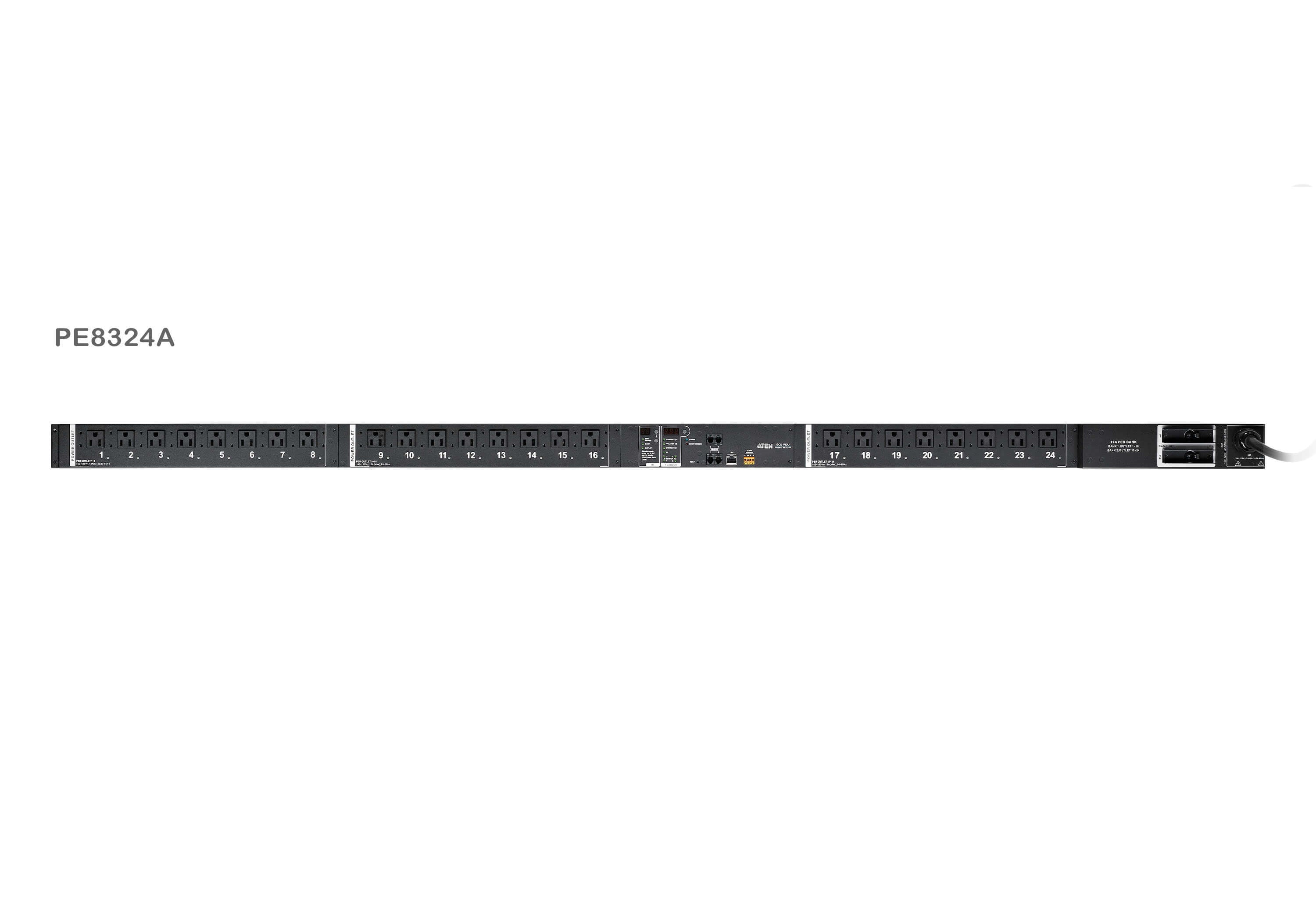

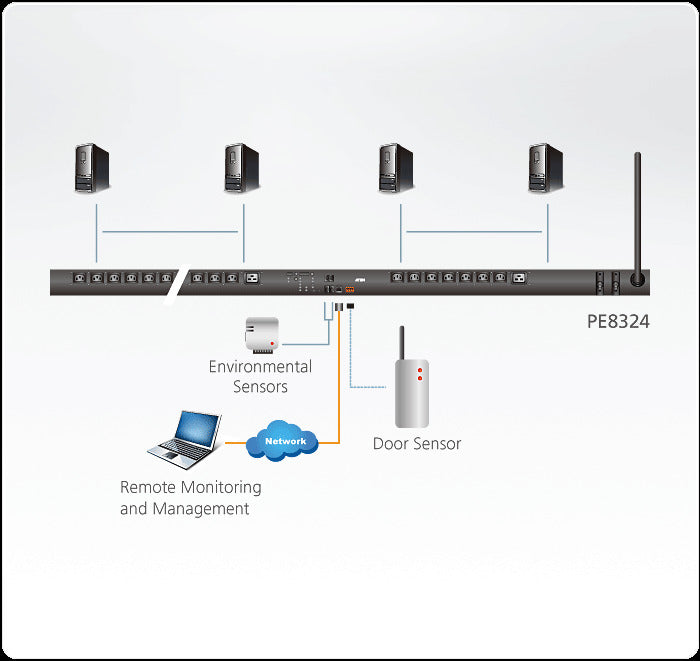

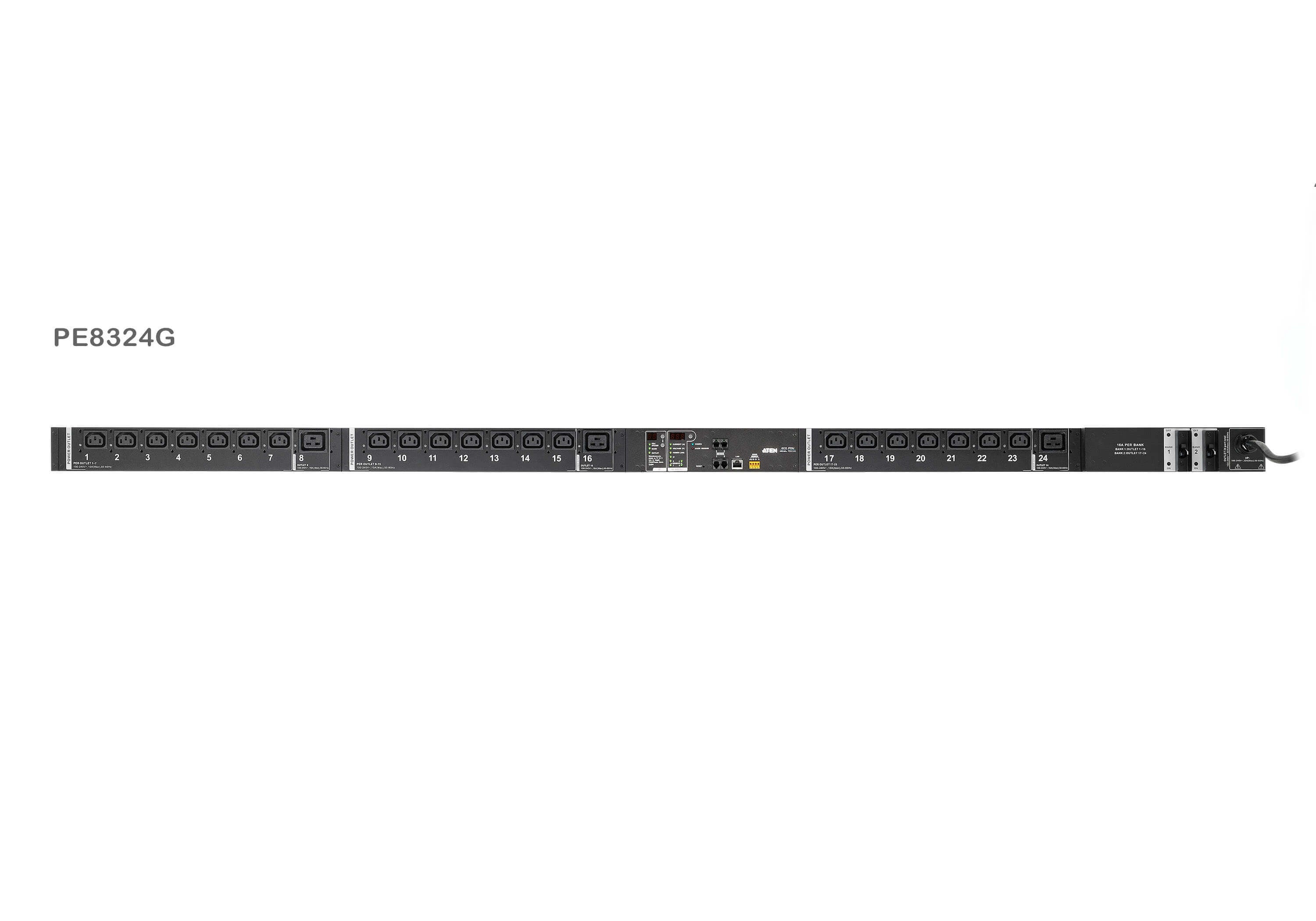

Aten 24 Port 0U eco PDU over IP - 32A Input with outlet level metering and switching feature As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence´s proactive overload protection, which automatically powers off the last outlet that caused the current overload.NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center´s health environment via sensors.NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection. Connections Support 10/100Mbit Ethernet Interface Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari ) Metering PDU and outlet level power metering and monitoring Environment monitoring — supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting Support door sensor Outlet Switch Control Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups Outlet group support at the PDU Supports multiple power control methods — Wake on LAN, System After AC Back, Kill the Power Power-On sequencing — users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order Proactive overload protection(POP) — automatically powers off the last outlet that caused the current overload Nominal Input Voltage 100 – 120 VAC Maximum Input Current 30A(Max); 24A(UL de-rated) Input Frequency 50-60 Hz Input Connection NEMA L5-30P Input Power 3600 VA(Max); 2880 VA(UL de-rated) Outlet Type Total: 24 x NEMA 5-15R Temperature (Operating / Storage) 0 – 50°C / -20 – 60°C Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing Package Contents 1x PE8324 eco PDU 1x Standard Rack Mount Kit 1x User Instructions
