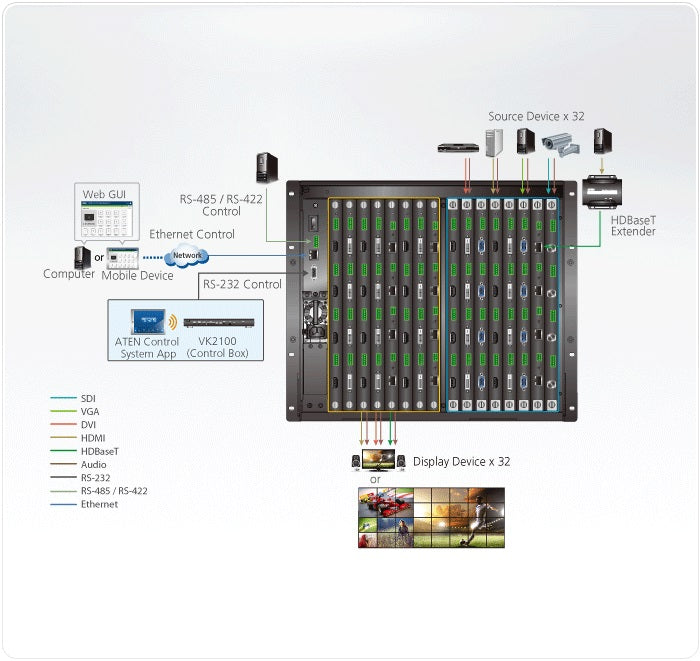

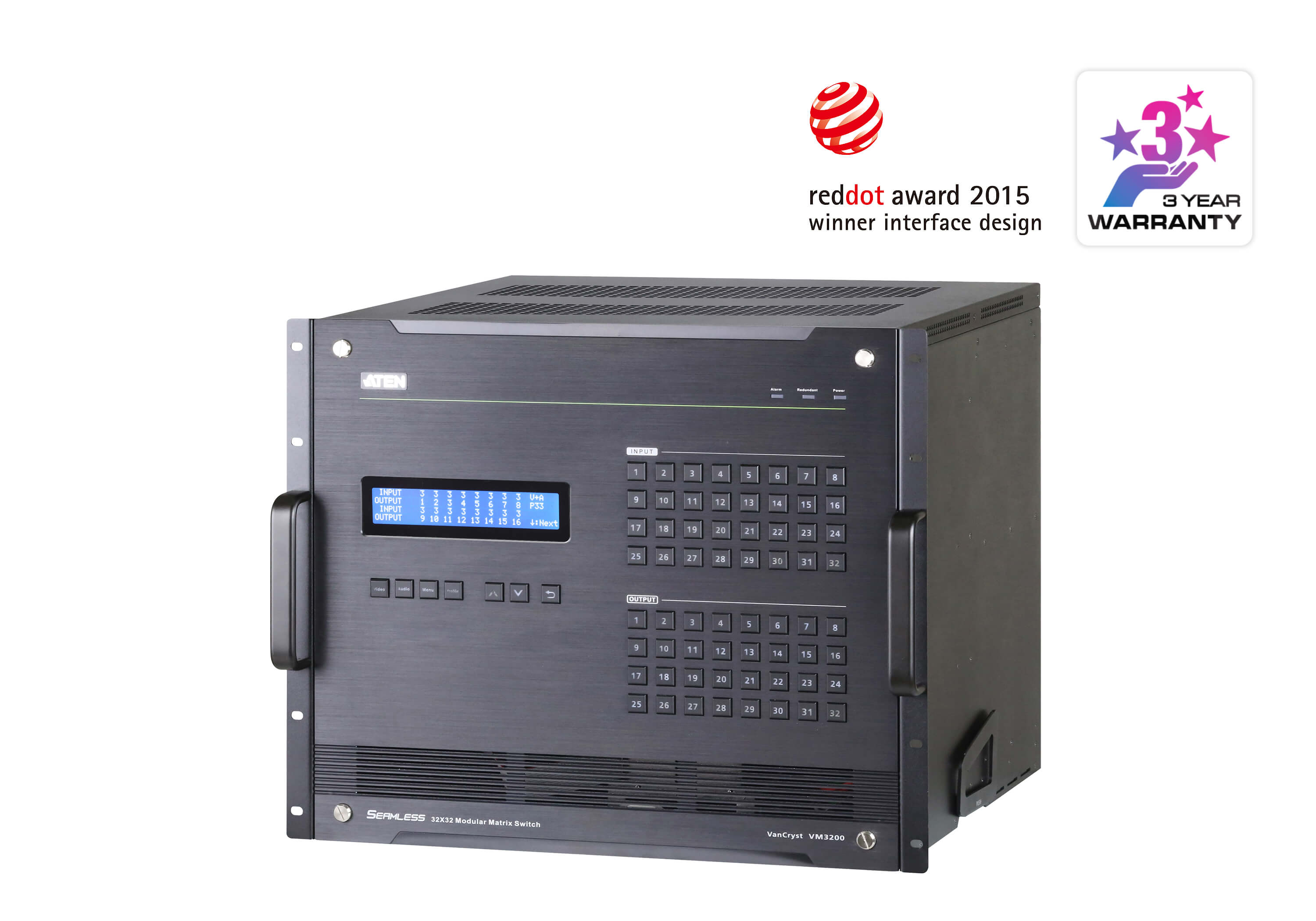

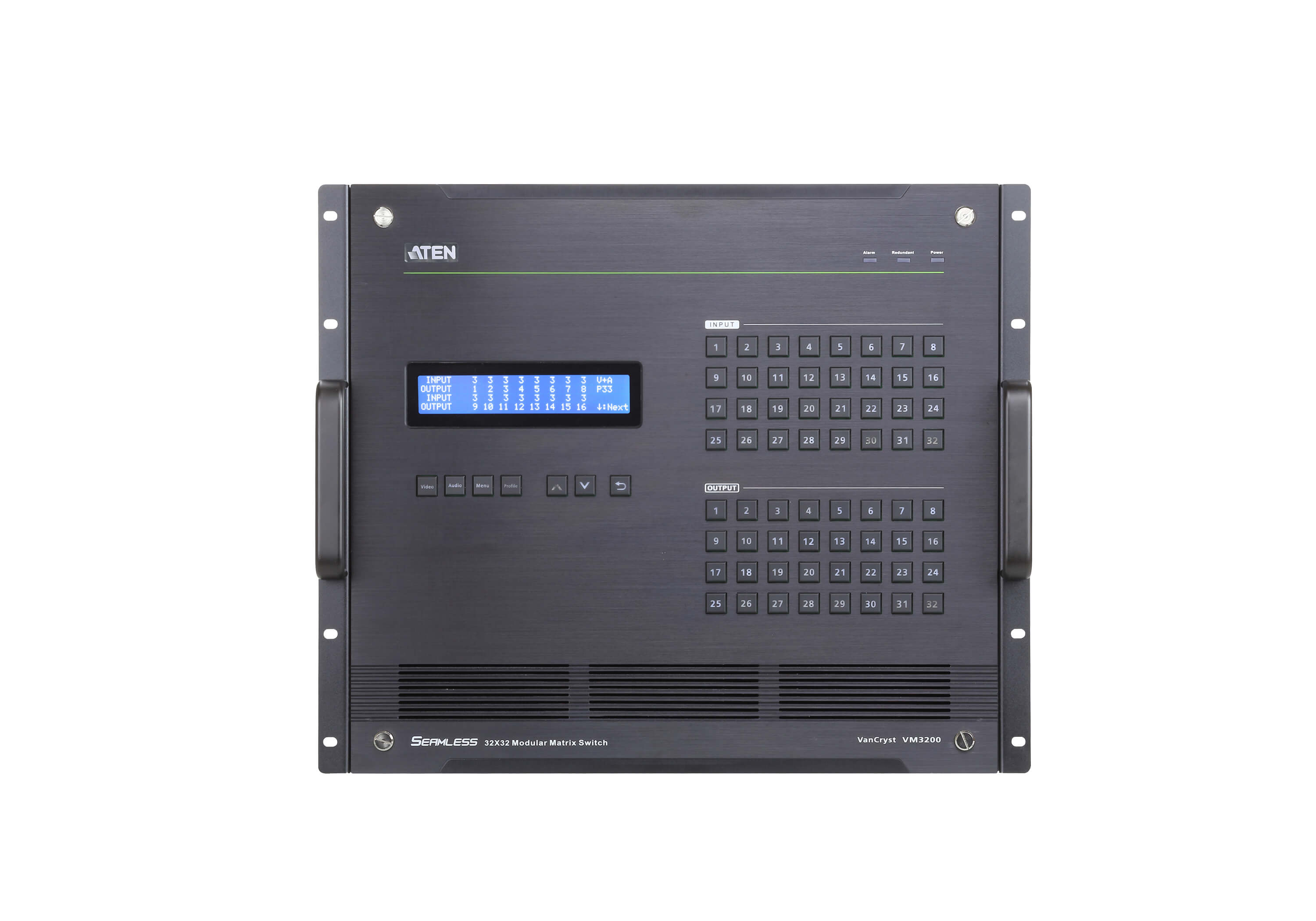

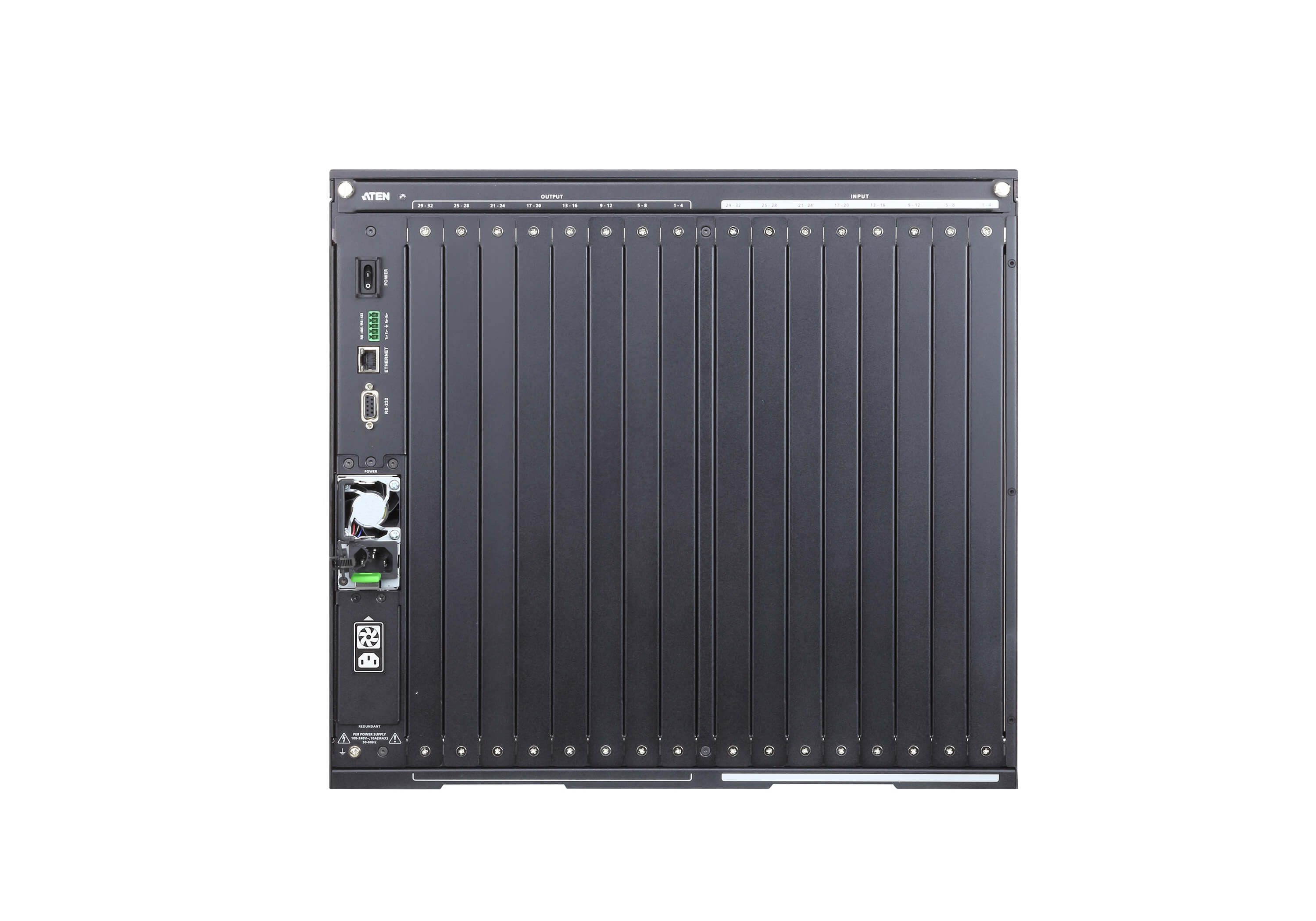

Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors. The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Supports 4K resolutions – up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0) Board Input 8 x Slot Board Output 8 x Slot Video Input Interfaces Depends on which I/O board is inserted Max. Data Rate 15.2 Gbps (3.8Gbps per Lane) Audio Input Depends on which Input board is inserted Output Depends on which Output board is inserted Control RS-232 Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole Ethernet Connector: 1 x RJ-45 Female EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) Connectors Power 1 x 3-Prong AC Socket Power Maximum Input Power Rating 100-240 VAC; 50-60Hz; 10A Power Consumption AC110V:800W:239BTU AC220V:800W:236BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Rack Height (U Spaces) 9U
