Aten 4 Port DVI Input Board for VM1600A/VM3200

$1,494.00

$1,494.00 $1,735.45

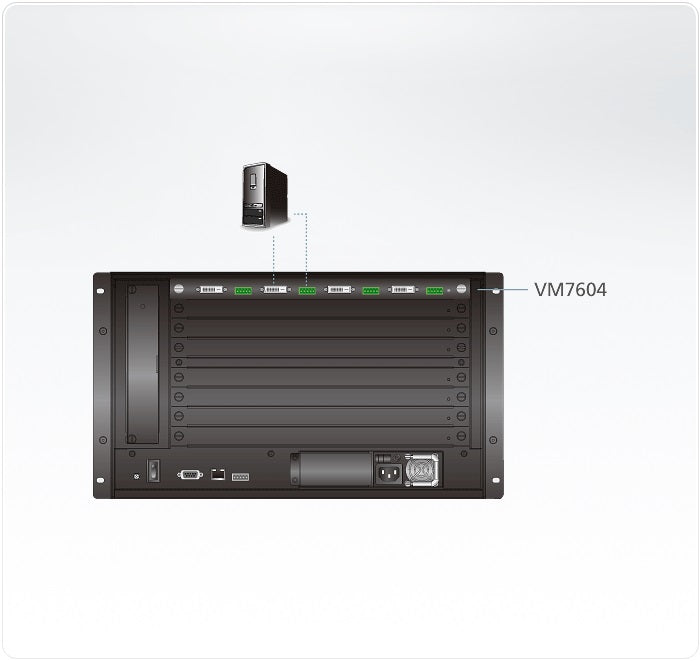

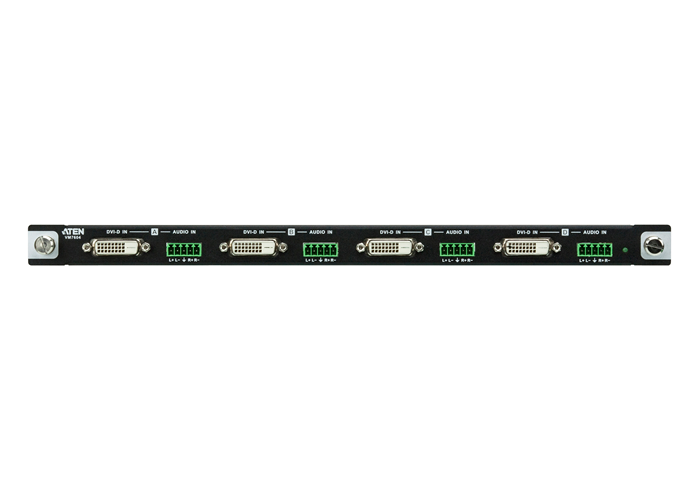

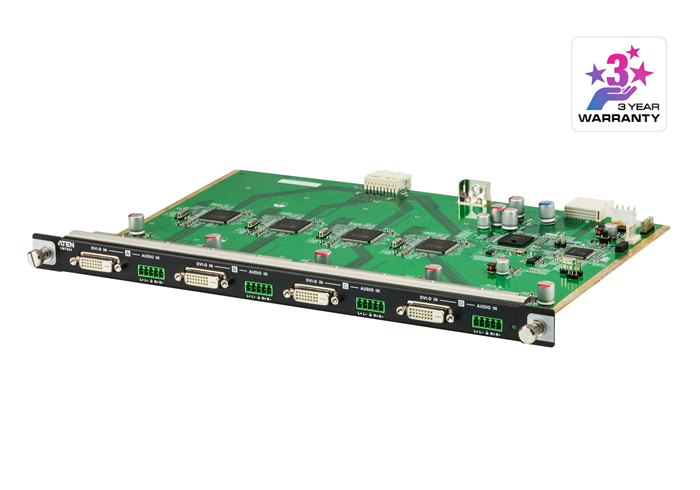

The VM7604 4-Port DVI Input Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN’s Modular Matrix Switch. 4-port DVI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility Superior video quality – up to 1920 x 1200 @ 60Hz HDCP 1.4 Compatible EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display Built-in EDID wizard – provides an easy way to customized EDID settings Hot-swappable design for easy integration of I/O boards Audio-enabled Video Input Interfaces 4 x DVI-D Female (White) Impedance 100 Ω Video Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDCP 1.4 Compatible Max. Resolution Up to 1920 x 1200 Max. Distance 5 m Audio Input 4 x Captive Screw Connector, 5 Pole *Audio signal type: stereo, balanced/unbalanced. Power Consumption 10.62W:50BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal

Aten

Aten 4 Port DVI Input Board for VM1600A/VM3200

Name: Aten 4 Port DVI Input Board for VM1600A/VM3200
Brand: Aten
SKU: KVA-VM7604
Price: 1494.00 AUD
Availability: OutOfStock

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)

$1,494.00 $1,735.45

Out of Stock Notify me when available

The VM7604 4-Port DVI Input Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN’s Modular Matrix Switch. 4-port DVI Input...
