Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT) - Image 1

Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT)

$2,740.99
$2,740.99 $2,762.99
Skip to product information
Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT) - Image 1
  • Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT) - Image 1
  • Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT) - Image 2
  • Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT) - Image 1
  • Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT) - Image 2
Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT)

Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT)

$2,740.99
$2,740.99 $2,762.99

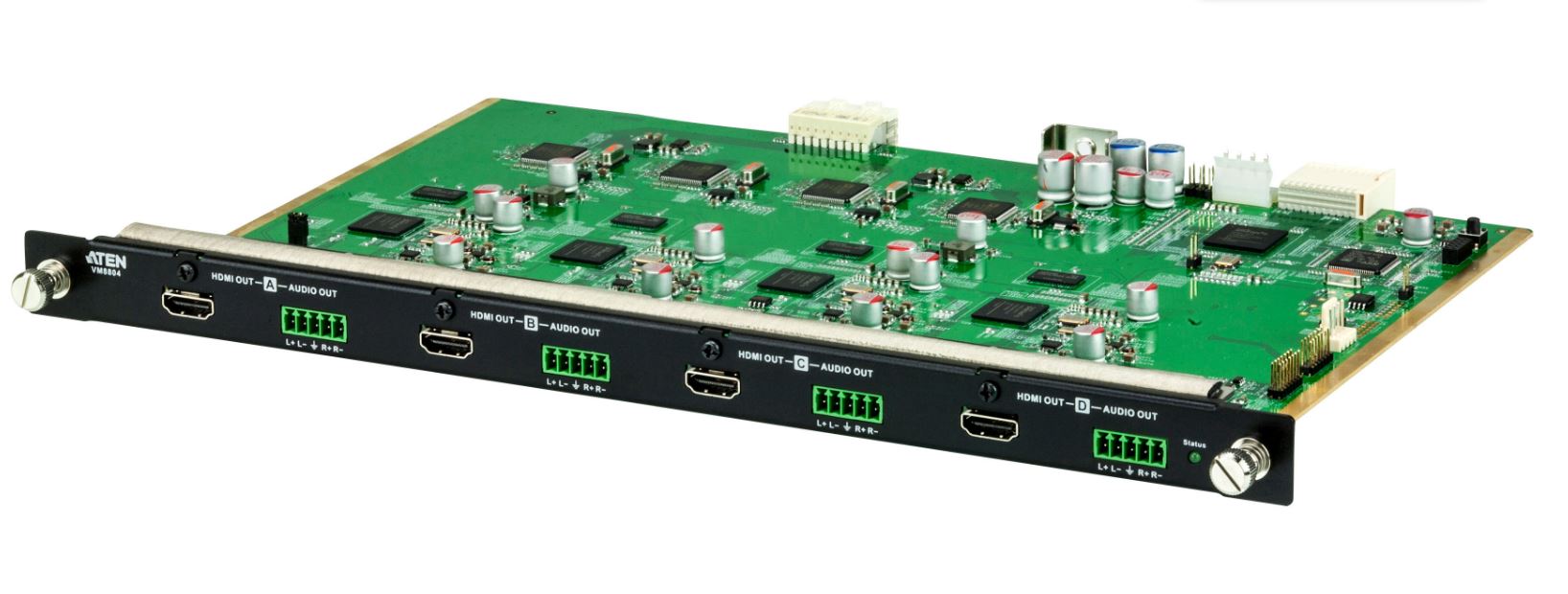

Aten 4 Port HDMI Output Board for VM1600A/VM3200 HDMI (3D, Deep Color); HDCP 1.4 Compatible Built-in scaler on each output port to support the scaling function for different video resolutions Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission Audio-enabled Video Output Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance Up to 15m Video Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) Max. Resolution Up to 1920 x 1080 Audio Output 4 x Captive Screw Connector, 5 pole * Audio signal type: stereo, balanced/unbalanced. Power Consumption 23.13W:108BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.58 kg ( 1.28 lb ) Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) Carton Lot 2 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents 1x VM8804 4-Port HDMI Output Board with Scaler 4x Terminal Blocks 1x User Instructions
Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT)
Aten

Aten 4 Port HDMI Output Board for VM1600A/VM3200 (PROJECT)

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$2,740.99 $2,762.99
Out of Stock Notify me when available
Aten 4 Port HDMI Output Board for VM1600A/VM3200 HDMI (3D, Deep Color); HDCP 1.4 Compatible Built-in scaler on each output port to support the scaling function for different video resolutions Seamless Switch™– provides continuous video...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
Aten 4 Port HDMI Output Board for VM1600A/VM3200 HDMI (3D, Deep Color); HDCP 1.4 Compatible Built-in scaler on each output port to support the scaling function for different video resolutions Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission Audio-enabled Video Output Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance Up to 15m Video Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) Max. Resolution Up to 1920 x 1080 Audio Output 4 x Captive Screw Connector, 5 pole * Audio signal type: stereo, balanced/unbalanced. Power Consumption 23.13W:108BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.58 kg ( 1.28 lb ) Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) Carton Lot 2 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents 1x VM8804 4-Port HDMI Output Board with Scaler 4x Terminal Blocks 1x User Instructions
