Aten 4-Port VGA/Audio Splitter (450MHz) One video input to 4 video outputs

Aten 4-Port VGA/Audio Splitter (450MHz) One video input to 4 video outputs

$161.00
$161.00 $190.00

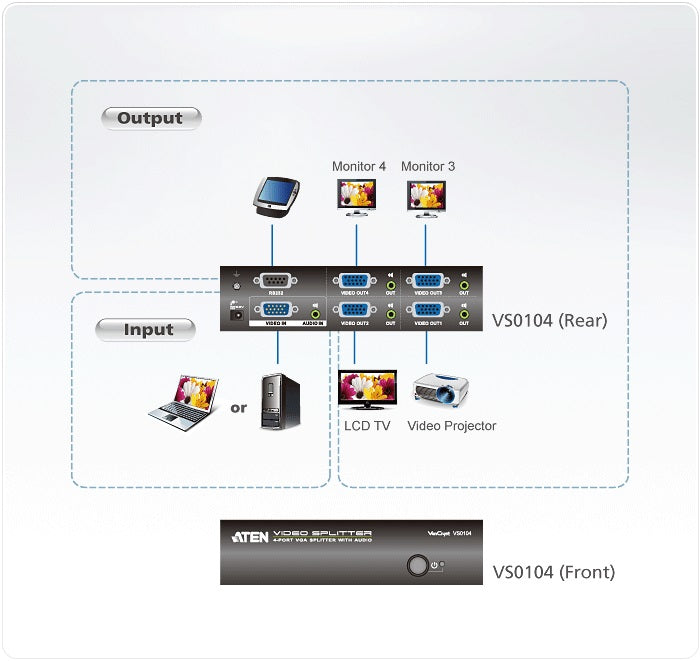

The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video and audio signal to be distributed to four output displays with independent stereo control. The VS0104 is perfect for conference rooms, training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible. Long distance transmission – up to 30m * Supports VGA, SVGA, UXGA, WUXGA, and multisync EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display Expandable – provides up to 64 video displays Features RS-232 serial port for command controls ** RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable Supports stereo audio Plug-and-play – no software installation required Video Input Interfaces 1 x HDB-15 Male (Blue) Impedance 75 Ω Max. Distance 1.8 m Video Output Interfaces 4 x HDB-15 Female (Blue) Impedance 75 Ω Video Max. Bandwidth 450 MHz Max. Resolution Up to 1920 x 1440 Max. Distance Up to 30 m Audio Input 1 x Mini Stereo Jack Female (Green) Output 4 x Mini Stereo Jack Female (Green) Control RS-232 1 x DB-9 Female (Black) EDID Settings EDID Mode: Port 1 / Auto / Default Connectors Power 1 x DC Jack Power Consumption DC5.3V:1.13W:5BTU Environmental Operating Temperature 0-50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.68 kg ( 1.5 lb ) Dimensions (L x W x H) 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.)
Aten 4-Port VGA/Audio Splitter (450MHz) One video input to 4 video outputs
Aten

Aten 4-Port VGA/Audio Splitter (450MHz) One video input to 4 video outputs

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$161.00 $190.00
Out of Stock Notify me when available
The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video and audio signal to be distributed to four output displays with independent stereo control. The VS0104 is perfect...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video and audio signal to be distributed to four output displays with independent stereo control. The VS0104 is perfect for conference rooms, training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible. Long distance transmission – up to 30m * Supports VGA, SVGA, UXGA, WUXGA, and multisync EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display Expandable – provides up to 64 video displays Features RS-232 serial port for command controls ** RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable Supports stereo audio Plug-and-play – no software installation required Video Input Interfaces 1 x HDB-15 Male (Blue) Impedance 75 Ω Max. Distance 1.8 m Video Output Interfaces 4 x HDB-15 Female (Blue) Impedance 75 Ω Video Max. Bandwidth 450 MHz Max. Resolution Up to 1920 x 1440 Max. Distance Up to 30 m Audio Input 1 x Mini Stereo Jack Female (Green) Output 4 x Mini Stereo Jack Female (Green) Control RS-232 1 x DB-9 Female (Black) EDID Settings EDID Mode: Port 1 / Auto / Default Connectors Power 1 x DC Jack Power Consumption DC5.3V:1.13W:5BTU Environmental Operating Temperature 0-50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.68 kg ( 1.5 lb ) Dimensions (L x W x H) 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.)
