Aten 4 Port VGA Input Board for VM1600A/VM3200

$1,747.00

$1,747.00 $2,026.36

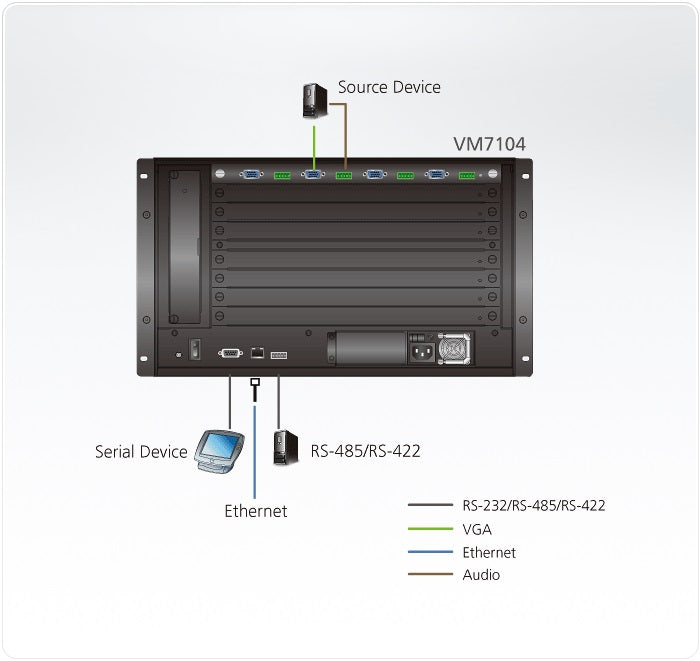

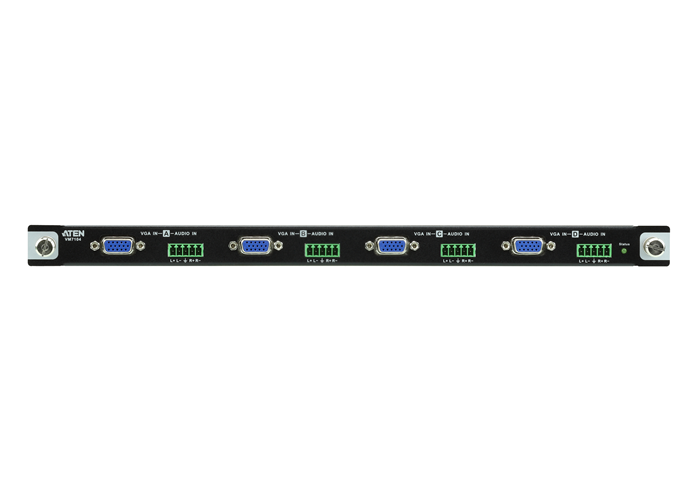

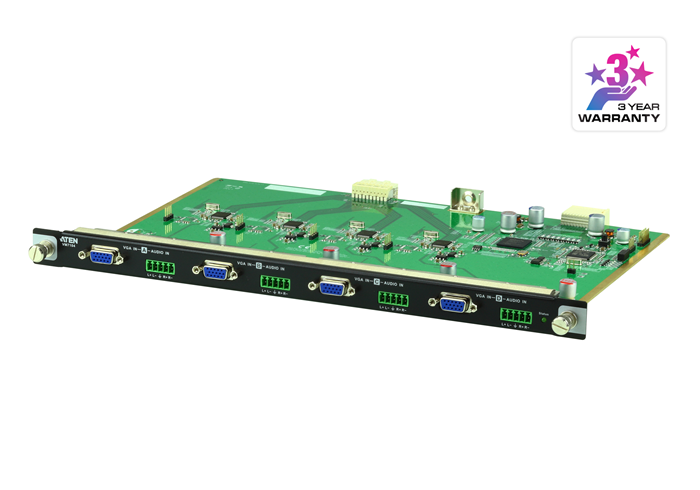

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed. Connects up to 4 VGA or Component inputs Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals Hot-swappable design for easy integration of I/O boards Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility. Video Input Interfaces 4 x HDB-15 Female (Blue) Impedance 75 Ω Max. Bandwidth 300 MHz Max. Resolution Up to 1920 x 1200 Max. Distance 1.8 m Audio Inputs Interfaces 4 x Captive Screw Connectors, 5 pole * Audio signal type: stereo, balanced/unbalanced. Power Consumption 7.1W:33BTU Environmental Operating Temperature 0–40°C Storage Temperature -20–60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal

Aten

Aten 4 Port VGA Input Board for VM1600A/VM3200

Name: Aten 4 Port VGA Input Board for VM1600A/VM3200
Brand: Aten
SKU: KVA-VM7104
Price: 1747.00 AUD
Availability: OutOfStock

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)

$1,747.00 $2,026.36

Out of Stock Notify me when available

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports...
