Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch

Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch

$230.99
$230.99 $235.99

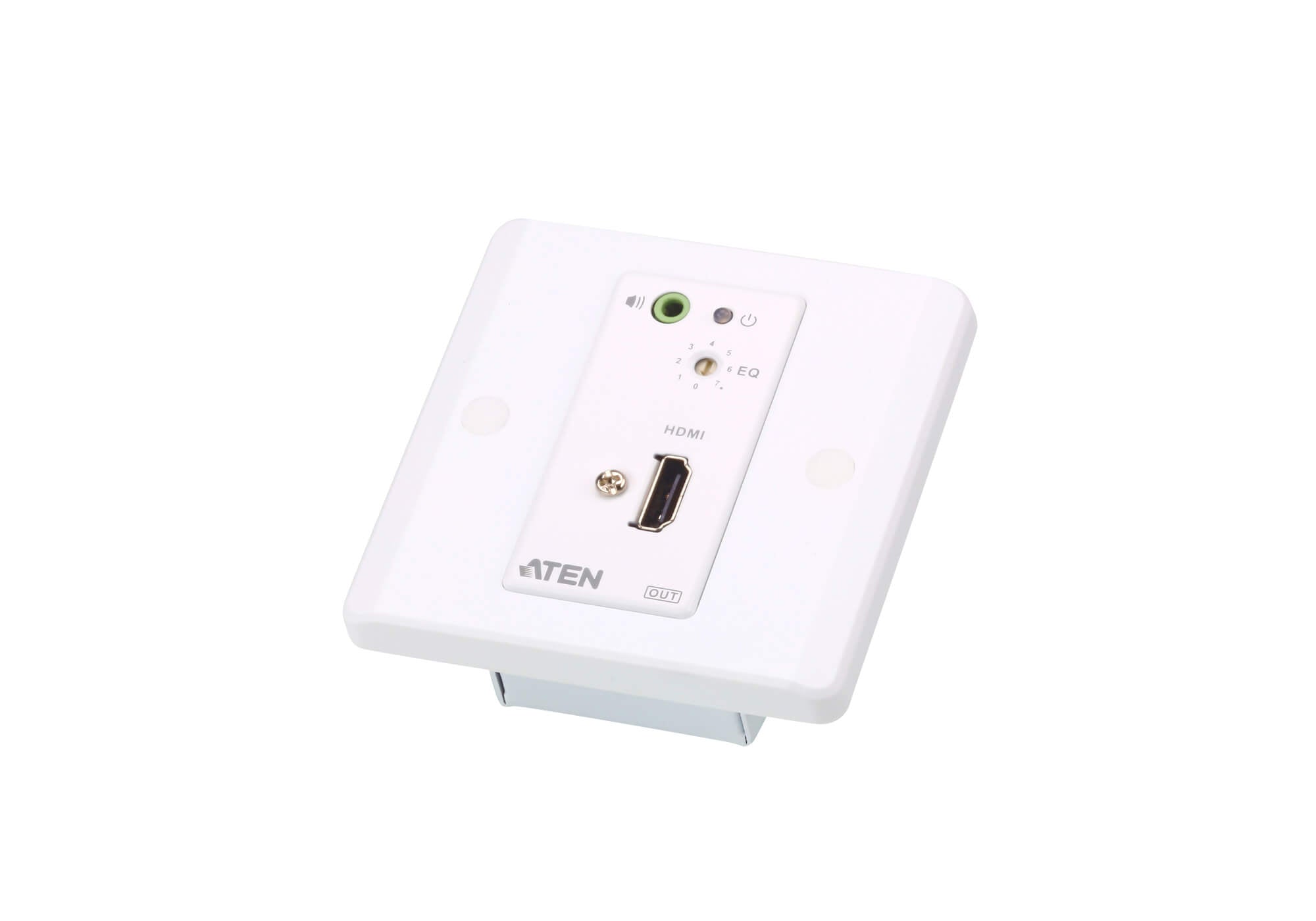

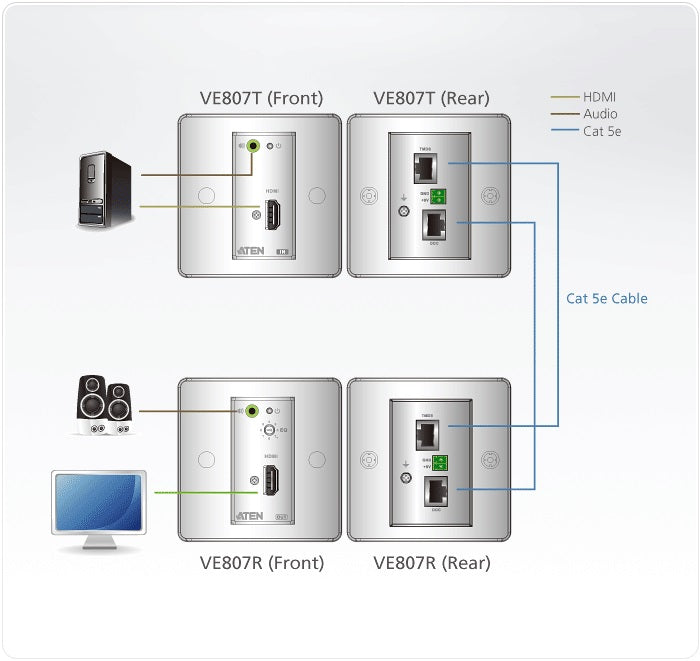

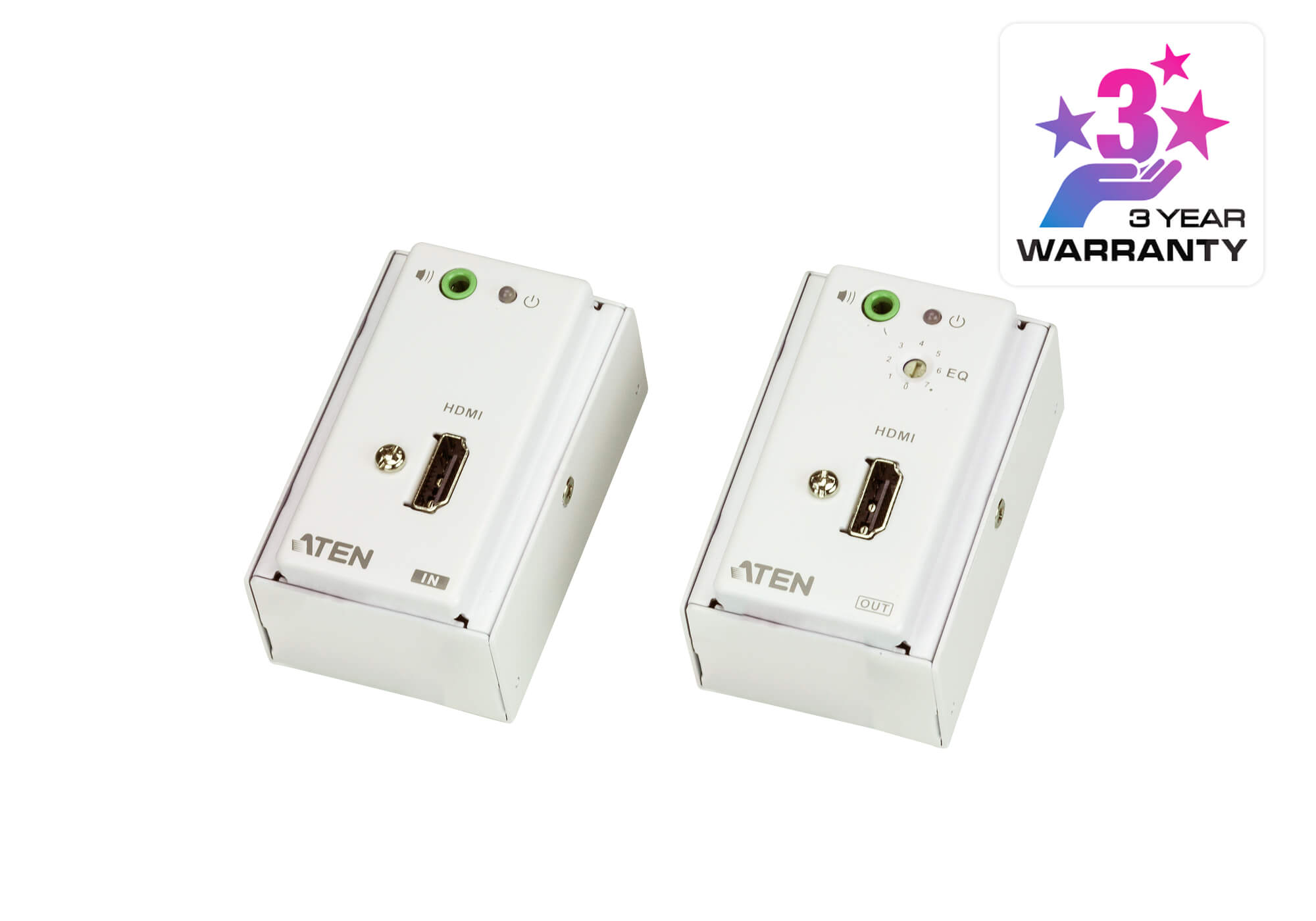

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality. Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m VE807R VE807T Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP Compatible Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Audio 1 x HDMI Type A Female (Black) Power 1 x Terminal Block (Green) Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0-80% RH, Non-Condensing Housing Metal
Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch
Aten

Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$230.99 $235.99
Out of Stock Notify me when available
The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality. Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m VE807R VE807T Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP Compatible Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Audio 1 x HDMI Type A Female (Black) Power 1 x Terminal Block (Green) Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0-80% RH, Non-Condensing Housing Metal
