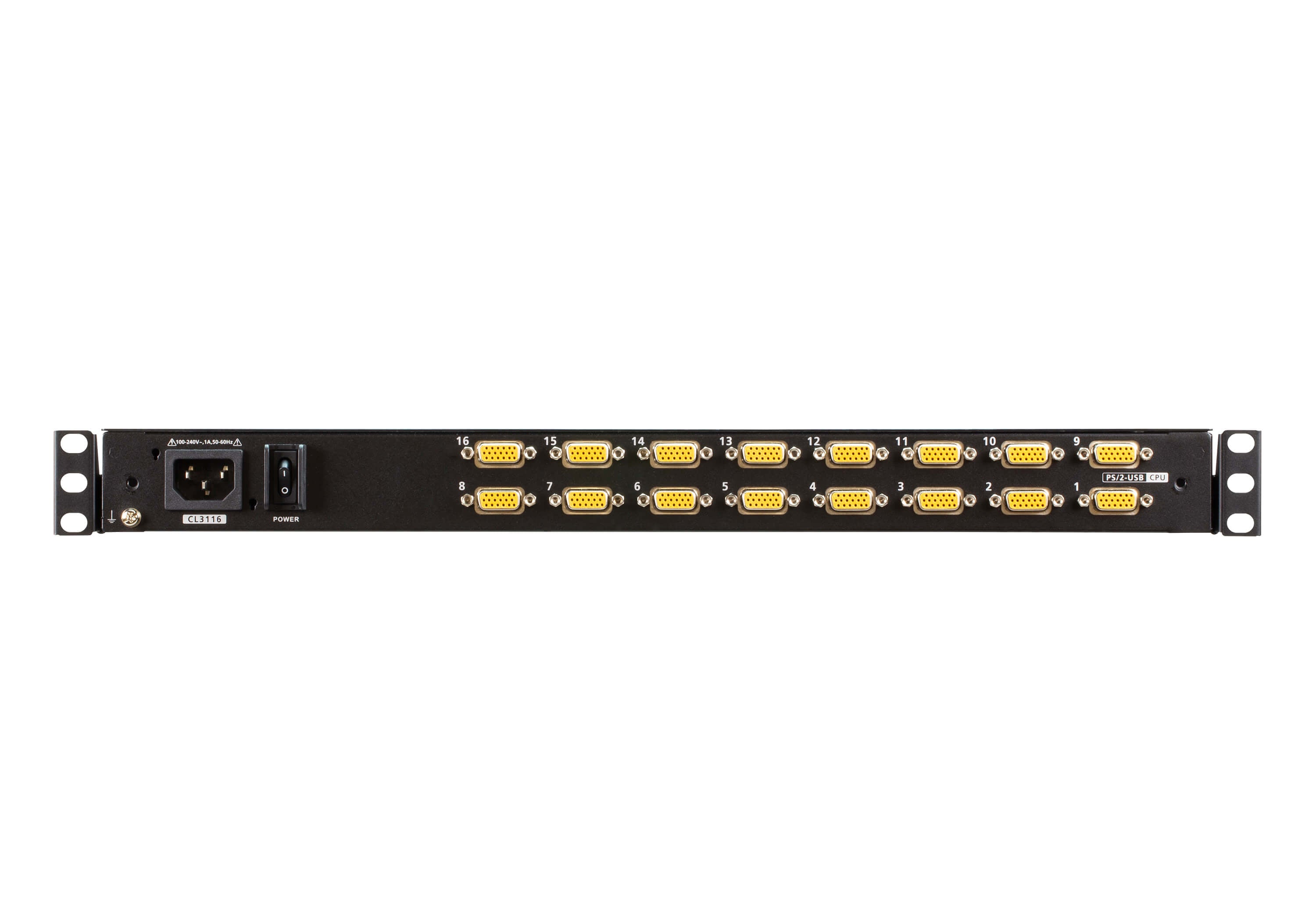

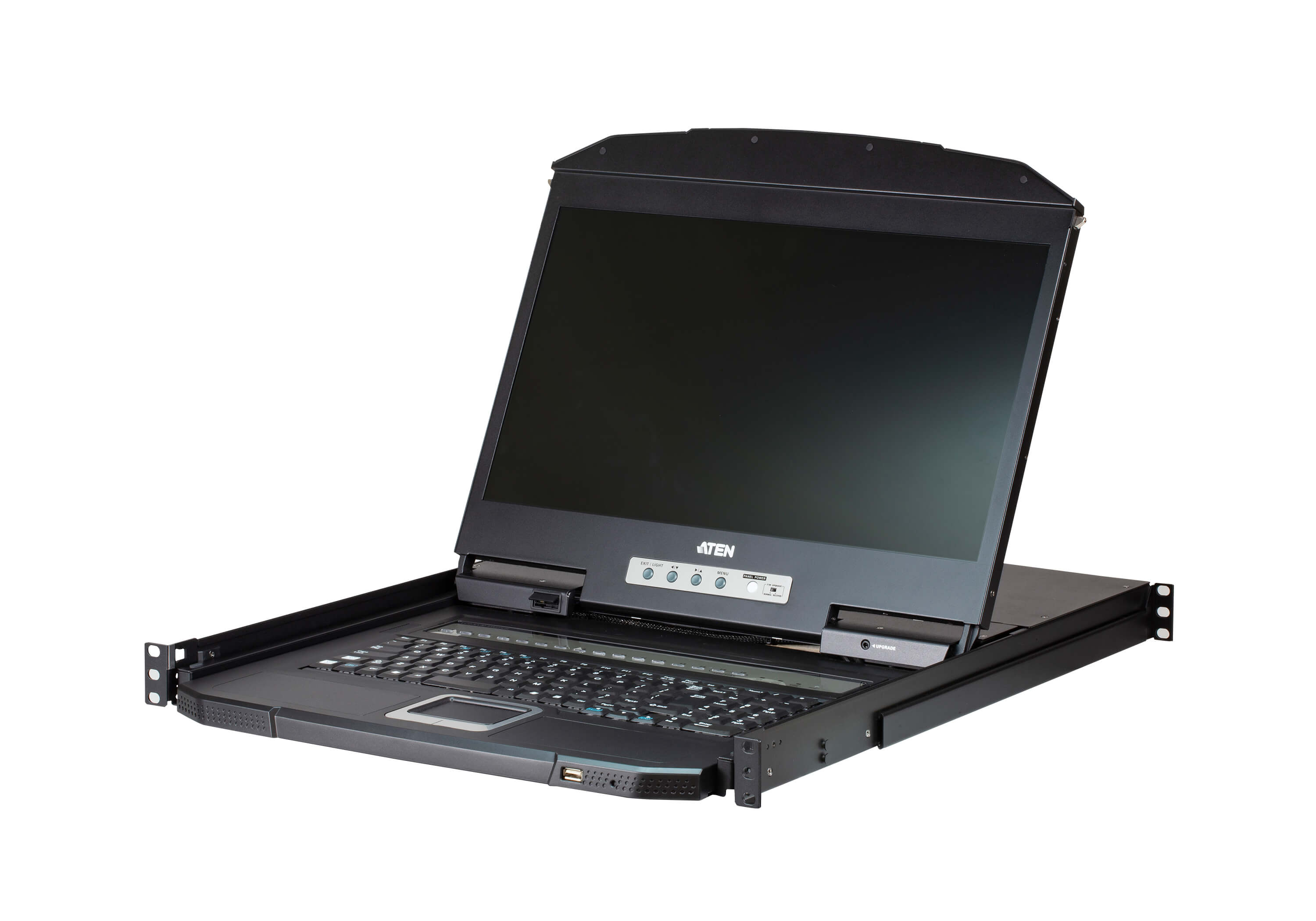

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 1

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design

$2,280.99
$2,280.99 $2,171.82
Skip to product information
Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 1
  • Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 1
  • Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 2
  • Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 3
  • Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 1
  • Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 2
  • Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design - Image 3
Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design

$2,280.99
$2,280.99 $2,171.82
Aten 18.5" Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console Keyboard and mouse emulation (PS/2 and USB) Specifications Function CL3116NX Computer Connections Direct 16 Connectors KVM Ports 16 x SPHD Female (Yellow) Switches Port Selection 16 x Pushbutton Video Input Video Resolution up to 1920 × 1200 @ 60 Hz; 1366 × 768 @ 60 Hz, DDC2B Scan Interval 1-255 seconds Emulation Keyboard / Mouse PS/2, USB Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A Power Consumption AC110V:14.1W:70BTU AC220V:14.9W:74BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal + Plastic Rail Type Single Rail Weight 10.60 kg ( 23.35 lb ) Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design
Aten

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5" LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$2,280.99
Out of Stock Notify me when available
Aten 18.5" Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable Exclusive...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
Aten 18.5" Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console Keyboard and mouse emulation (PS/2 and USB) Specifications Function CL3116NX Computer Connections Direct 16 Connectors KVM Ports 16 x SPHD Female (Yellow) Switches Port Selection 16 x Pushbutton Video Input Video Resolution up to 1920 × 1200 @ 60 Hz; 1366 × 768 @ 60 Hz, DDC2B Scan Interval 1-255 seconds Emulation Keyboard / Mouse PS/2, USB Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A Power Consumption AC110V:14.1W:70BTU AC220V:14.9W:74BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal + Plastic Rail Type Single Rail Weight 10.60 kg ( 23.35 lb ) Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
