Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 1

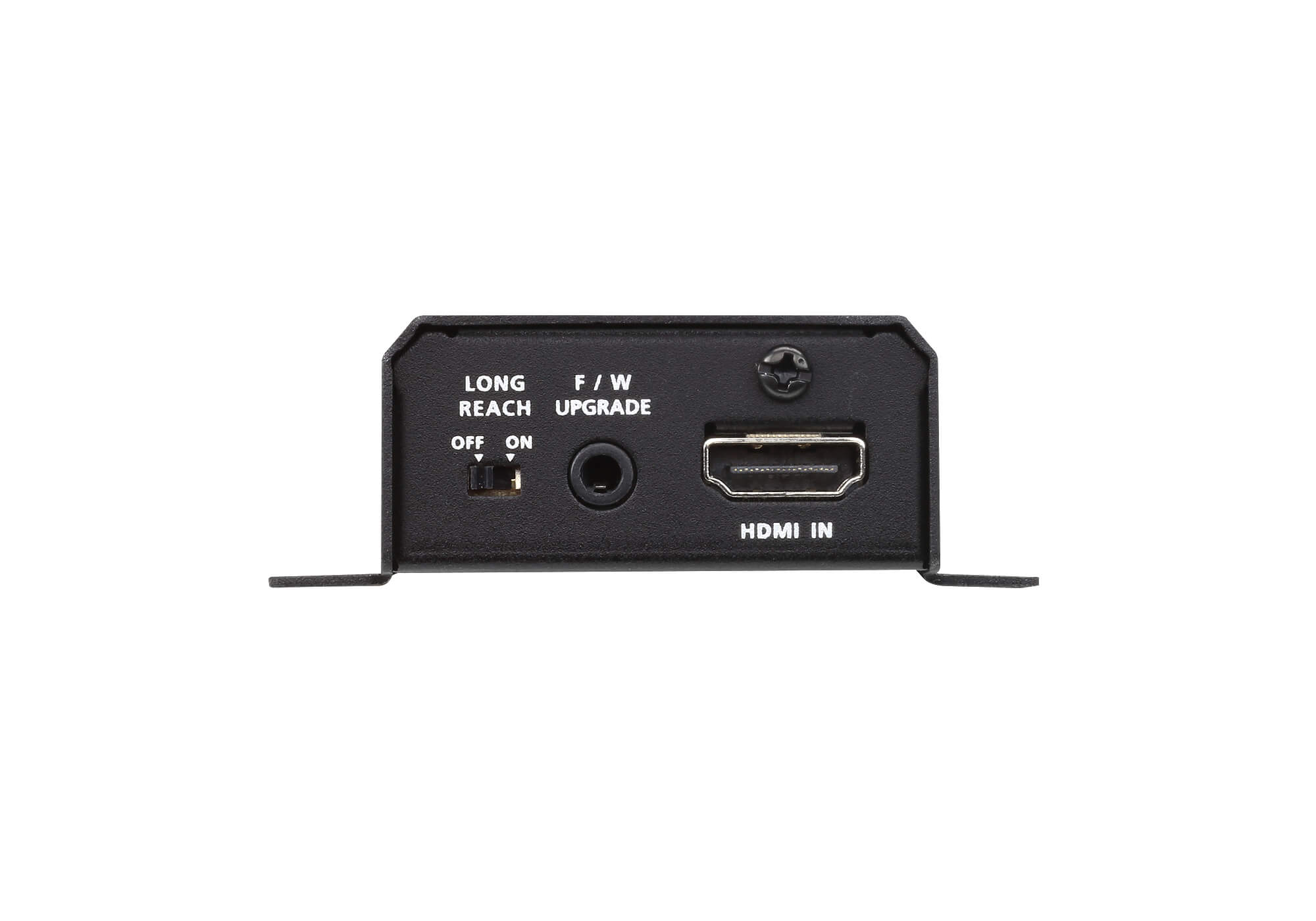

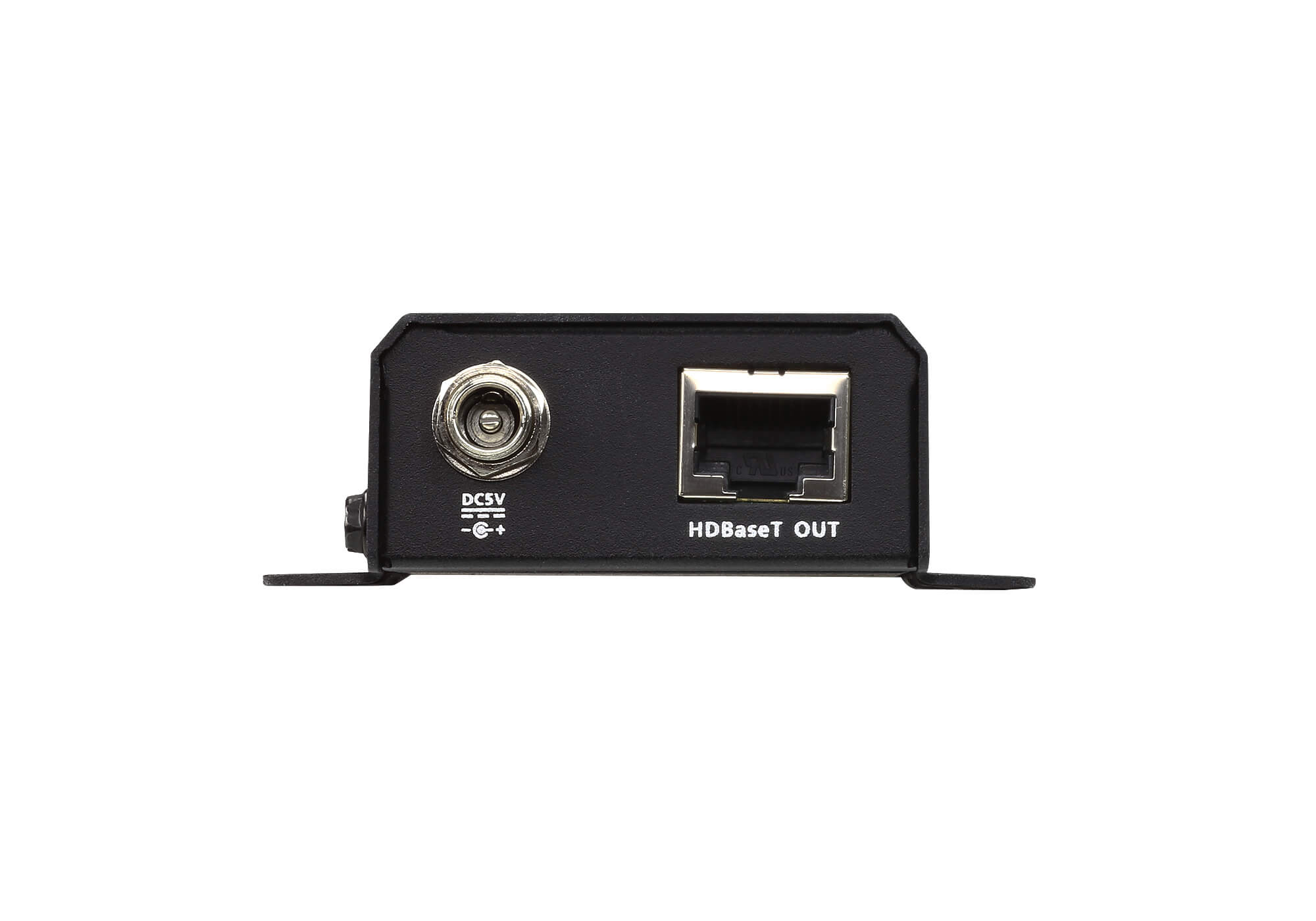

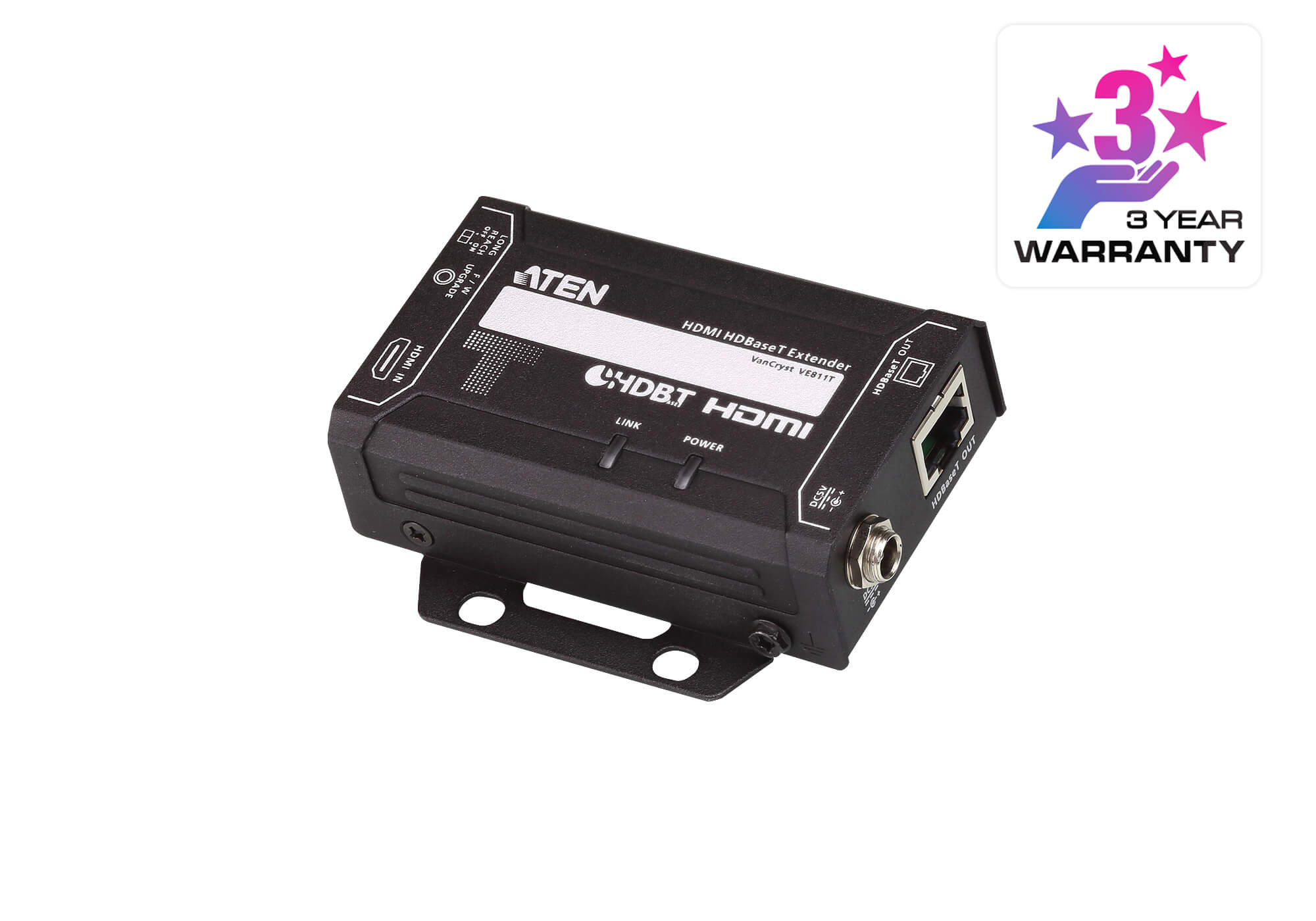

Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode

$257.00
$257.00 $299.09
Skip to product information
Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 1
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 1
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 2
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 3
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 4
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 1
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 2
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 3
  • Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode - Image 4
Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode

Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode

$257.00
$257.00 $299.09
The ATEN VE811T HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811T meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 7.1 ch and DTS HD audio. HDCP 2.2 compatible Supports resolutions of up to 4K and 1080p Supports wide screen format Plug and play – no software required Built-in 8kV / 15kV ESD protection Rack mountable Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black) Connectors Unit To Unit 1 x RJ-45 Female Firmware Upgrade 1 x Mini Stereo Jack Female (Black) Power 1 x DC Jack (Black) with locking Switches Long Reach Mode Switch 1 x Slide Switch - ON/OFF Power Consumption DC5V:3.77W:18BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal
Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode
Aten

Aten Small Form HDMI HDBaseT Transmitter, supports up to 4K@70m (Cat5e/6) and 100m (Cat 6A), 1080p @ 150m over long reach mode

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$257.00 $299.09
Out of Stock Notify me when available
The ATEN VE811T HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
The ATEN VE811T HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811T meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 7.1 ch and DTS HD audio. HDCP 2.2 compatible Supports resolutions of up to 4K and 1080p Supports wide screen format Plug and play – no software required Built-in 8kV / 15kV ESD protection Rack mountable Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black) Connectors Unit To Unit 1 x RJ-45 Female Firmware Upgrade 1 x Mini Stereo Jack Female (Black) Power 1 x DC Jack (Black) with locking Switches Long Reach Mode Switch 1 x Slide Switch - ON/OFF Power Consumption DC5V:3.77W:18BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal
