Aten VS0201 2-Port VGA/Audio Switch Displays the video output of two computers on a single monitor or projector

Aten VS0201 2-Port VGA/Audio Switch Displays the video output of two computers on a single monitor or projector

$78.00
$78.00 $89.91

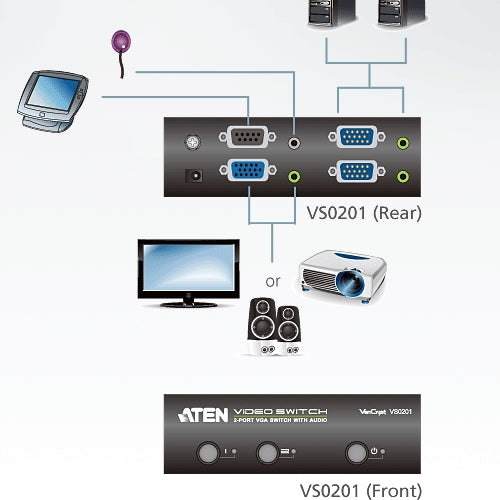

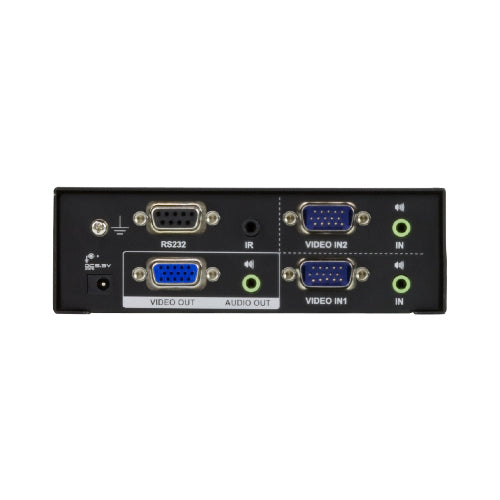

The VS0201 2-Port VGA Switch with Audio allows you to connect two audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use. VS0201 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0201 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection. The VS0201 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display. Video Input Interfaces 2 x HDB-15 Male (Blue) Impedance 75 Ω Max. Distance 1.8 m Video Output Interfaces 1 x HDB-15 Female (Blue) Impedance 75 Ω Max. Distance 30 m Video Max. Bandwidth 300 MHz Max. Resolution Up to 1920 x 1440 Max. Distance Up to 30 m Audio Input 2 x Mini Stereo Jack Female (Green) Output 1 x Mini Stereo Jack Female (Green) Control RS-232 Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No IR 1 x Mini Stereo Jack Female (Black) Connectors Power 1 x DC Jack Power Consumption DC5.3V:0.55W:3BTU Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.45 kg ( 0.99 lb ) Dimensions (L x W x H) 13.00 x 7.61 x 4.40 cm
Aten VS0201 2-Port VGA/Audio Switch Displays the video output of two computers on a single monitor or projector
Aten

Aten VS0201 2-Port VGA/Audio Switch Displays the video output of two computers on a single monitor or projector

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$78.00 $89.91
Out of Stock Notify me when available
The VS0201 2-Port VGA Switch with Audio allows you to connect two audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use. VS0201 built-in bi-directional...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
The VS0201 2-Port VGA Switch with Audio allows you to connect two audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use. VS0201 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0201 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection. The VS0201 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display. Video Input Interfaces 2 x HDB-15 Male (Blue) Impedance 75 Ω Max. Distance 1.8 m Video Output Interfaces 1 x HDB-15 Female (Blue) Impedance 75 Ω Max. Distance 30 m Video Max. Bandwidth 300 MHz Max. Resolution Up to 1920 x 1440 Max. Distance Up to 30 m Audio Input 2 x Mini Stereo Jack Female (Green) Output 1 x Mini Stereo Jack Female (Green) Control RS-232 Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No IR 1 x Mini Stereo Jack Female (Black) Connectors Power 1 x DC Jack Power Consumption DC5.3V:0.55W:3BTU Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.45 kg ( 0.99 lb ) Dimensions (L x W x H) 13.00 x 7.61 x 4.40 cm
