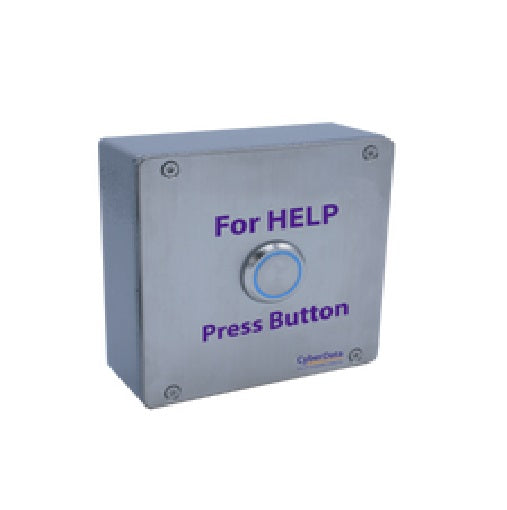

CyberData 011491 Outdoor SIP Call Button
IPC 011491
The SIP Outdoor Call Button is a reliable solution for a one-touch programmable call to an IP phone or page announcement. This IP65 rated device can be mounted on an outside wall or external door, in a parking area or harsh environment. If an event occurs, only a simple button press is required to automatically place a call to the configured phone or extension number. When the called number answers, the
Call Button plays and repeats a stored audio file. This stored audio file is uploaded by the administrator to meet the needs of the installed location. In a Singlewire InformaCast environment, the SIP Outdoor Call Button registers to the Cisco Call Manager as a third party SIP endpoint. When the Call Button is depressed it makes a call to the Cisco Call Manager and the Singlewire InformaCast software detects that call and initiates an event.
Features
- Single button call to pre-set number
- User uploadable message up to 80 seconds
- Continuous repeat of message
- Door closure and tamper alert signal
- Compatible with Cisco Call Manager
- DTMF-controlled Dry Relay Contact for auxiliary control
- Call progress light
- Supports Outdoor Auxiliary RGB (Multi-Color) Strobe Kit for visual notification
- TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
- Autoprovisioning via HTTPS, HTTP or TFTP
- HTTPS or HTTP web based configuration. HTTPS is enabled by default.
- Configurable event generation for device health and status monitoring
- 802.11q VLAN tagging
- HTTP Command Interface
- Support for Cisco SRST resiliency
