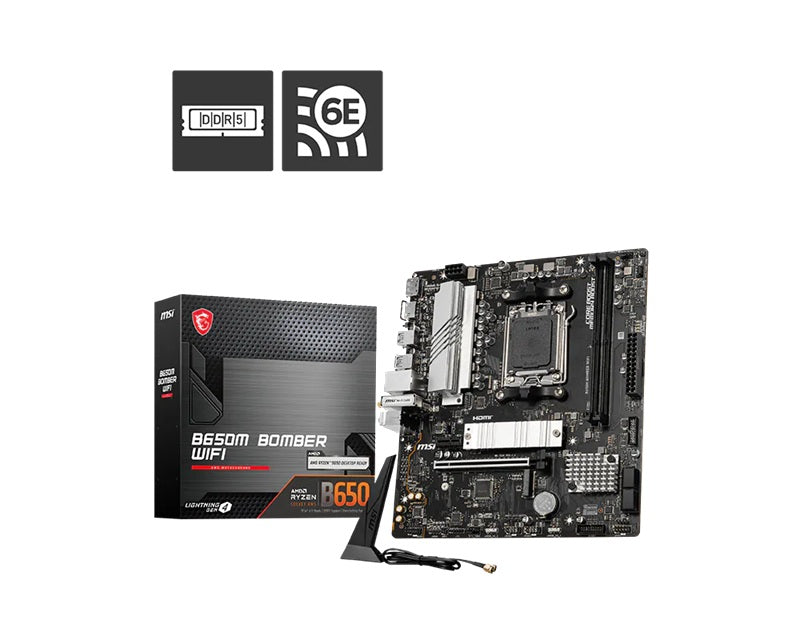

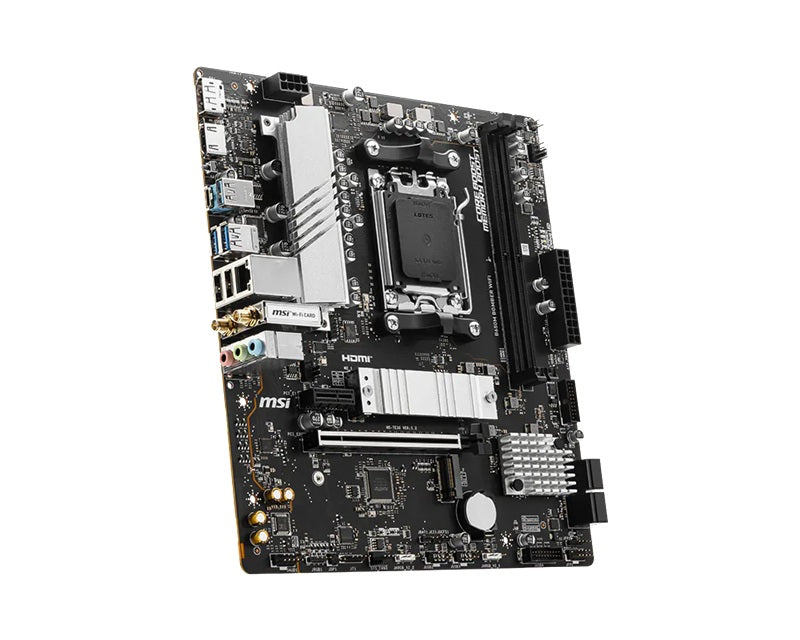

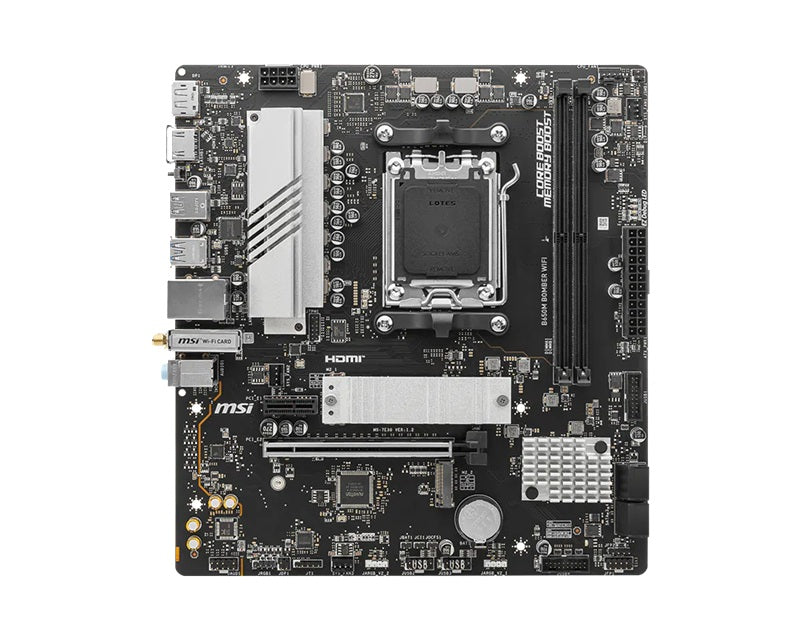

MSI B650M BOMBER WIFI AMD AM5 MATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 6x USB 2.0 CHIPSET AMD B650 CPU SUPPORT Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ ONBOARD GRAPHICS 1x HDMI™ 1x DisplayPort Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) STORAGE 2x M.2 slot M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) PCB DIMENSION mATX 226mmx243.84mm
