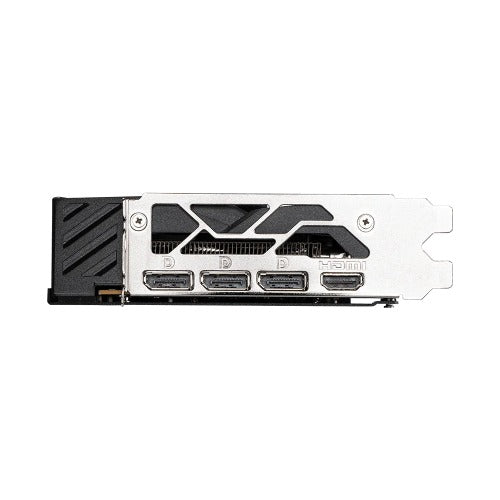

MSI nVidia GeForce RTX 5060 8G GAMING OC, PCI Express® Gen 5 x16, Boost: 2625 MHz, CUDA 3840 Units, 8GB GDDR7, . HDMI™ x 1 SPECIFICATIONS Marketing Name GeForce RTX™ 5060 8G GAMING OC Model Name G5060-8GC Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Interface PCI Express® Gen 5 x16 (uses x8) Core Clocks Extreme Performance: 2640 MHz (MSI Center) Boost: 2625 MHz CUDA® CORES 3840 Units Memory Speed 28 Gbps Memory 8 GB GDDR7 Memory Bus 128-bit Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) HDCP Support Y Power consumption 155W Power connectors 8-pin x 1 Recommended PSU 550W Card Dimension (mm) 248 x 135 x 41 mm Weight (Card / Package) 649 g / 966 g DirectX Version Support 12 Ultimate OpenGL Version Support 4.6 Maximum Displays 4 G-SYNC® technology Y Digital Maximum Resolution 7680 x 4320 FEATURES Twin Frozr 10 Experience superior cooling and quieter performance with MSI's enhanced fan blade design. STORMFORCE FAN Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise. Nickel-plated Copper Baseplate Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred. Core Pipes Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. Metal Backplate A reinforcing metal backplate with airflow vents and thermal pads enhances cooling. Wave Curved 3.0 Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world. MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
