MSI PRO B550M-P WIFI6E, AMD B550, AM4, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6E, 1Gb LAN, USB Type-C.
$182.99
Skip to product information

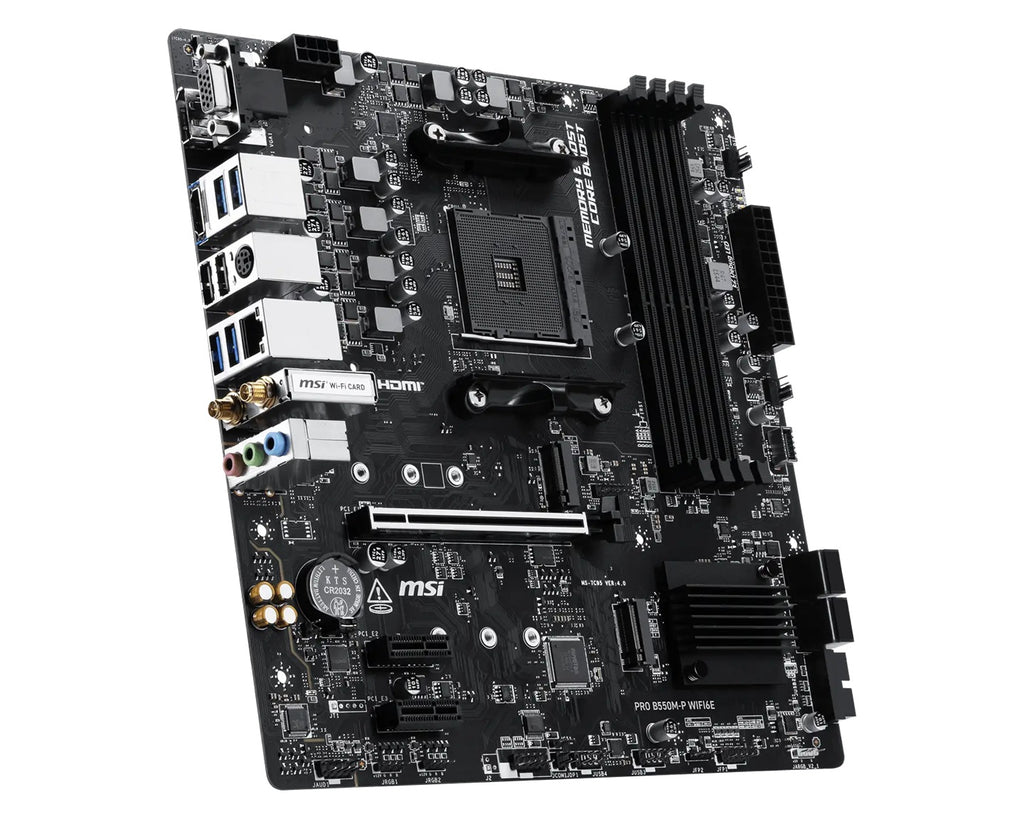

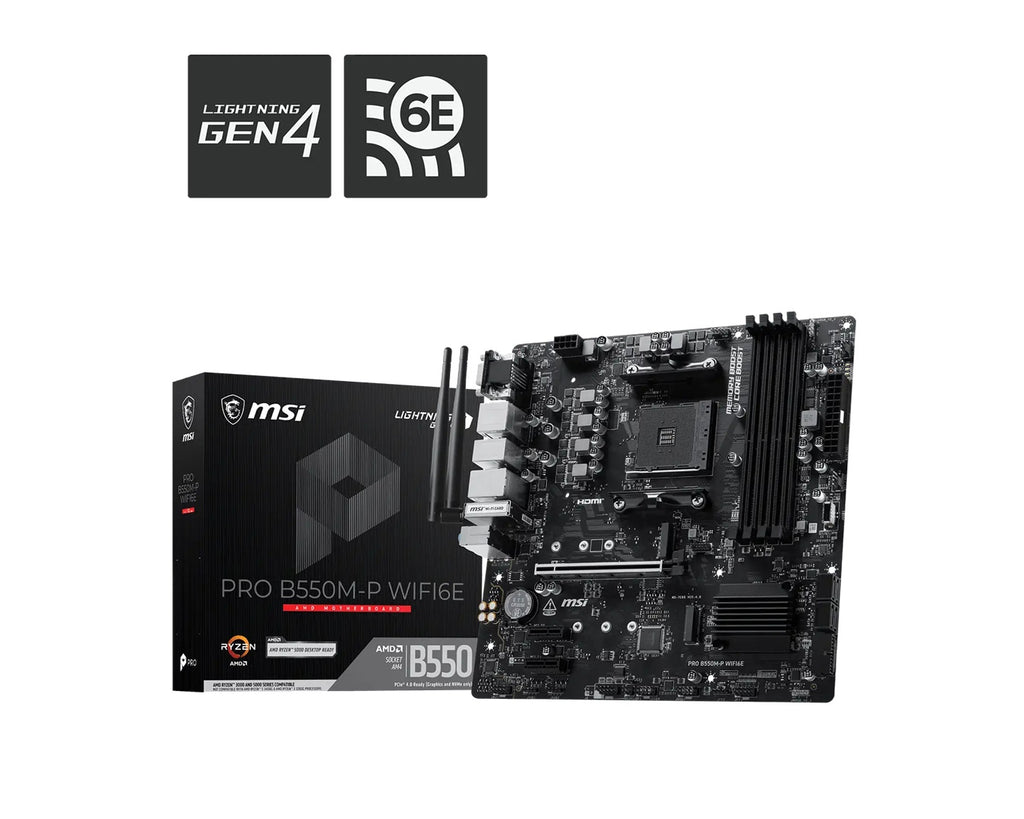

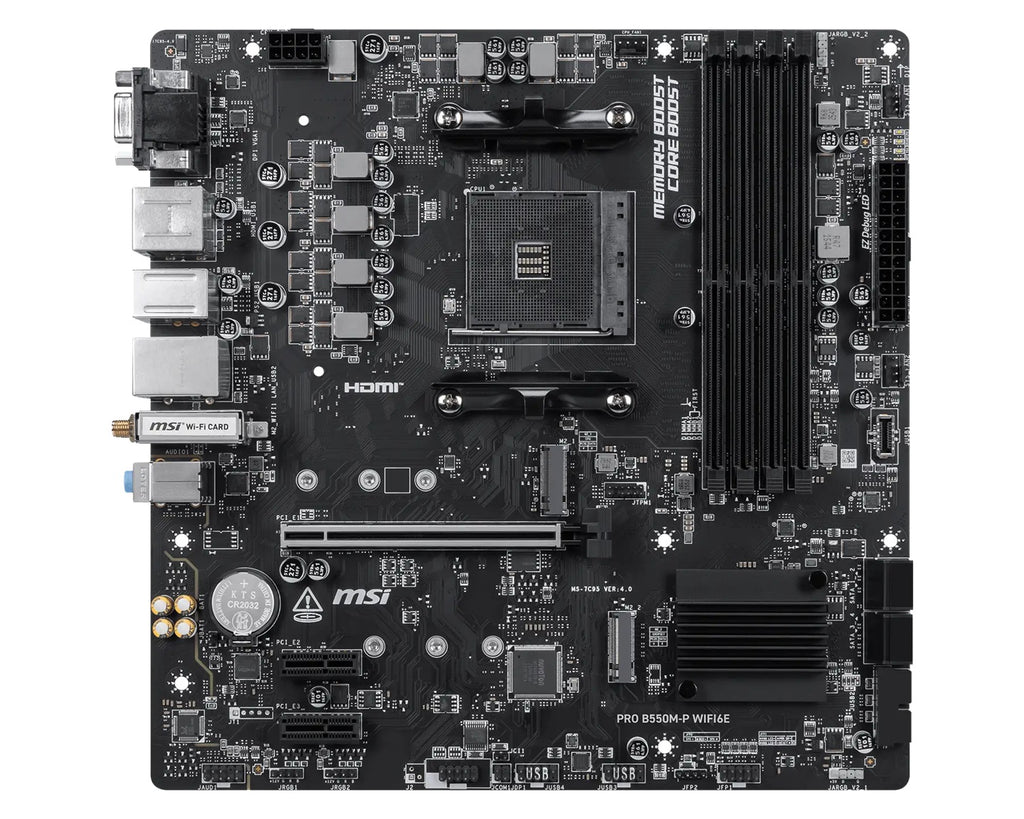

MSI PRO B550M-P WIFI6E
PRO B550M-P WIFI6E is engineered with PCIe 4.0 M.2, Frozr AI Cooling, Front Type-C, and the Wi-Fi 6E solution, ready for the AMD Ryzen™ 5000 series processors.
SPECIFICATIONS
Chipset AMD B550
CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Socket AM4
Memory
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4400+ MT/s
• 1DPC 2R Max speed up to 3733+ MT/s
• 2DPC 1R Max speed up to 3866+ MT/s
• 2DPC 2R Max speed up to 3466+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
*The supported specification depends on installed processor.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
*The supported specification depends on installed processor.
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

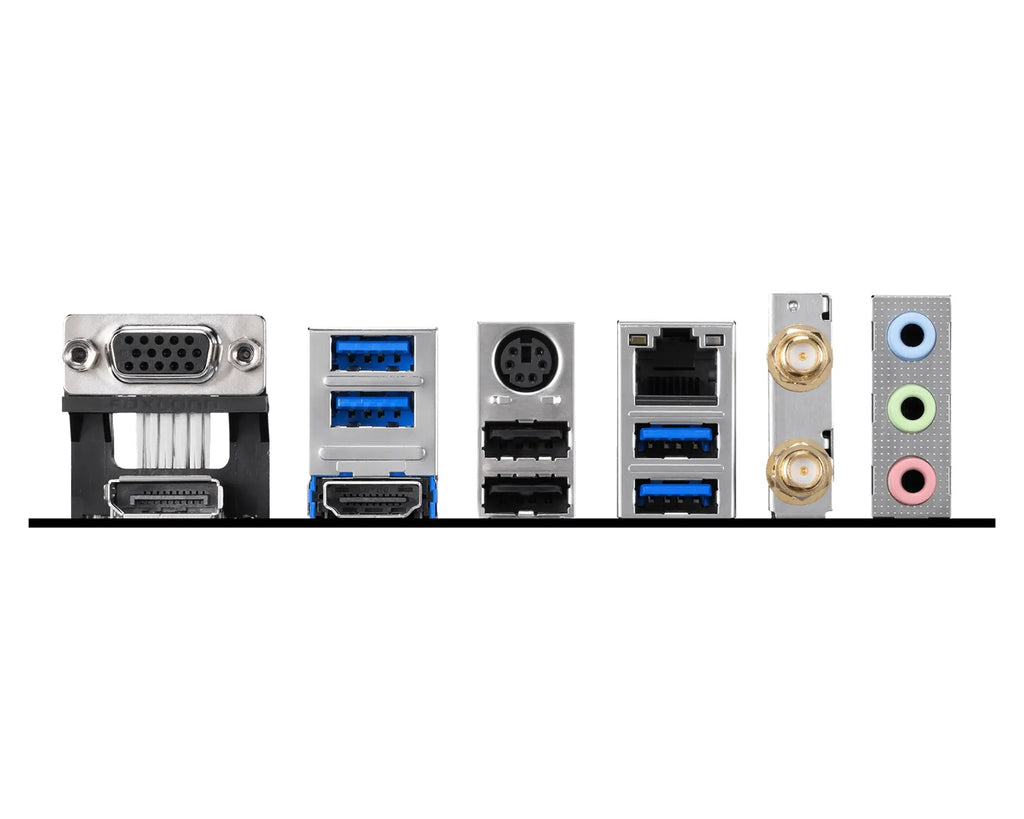

USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN Realtek® RTL8111H 1Gbps LAN
WIRELESS LAN & BLUETOOTH
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Dual-band 1T1R mode
Supports MU-MIMO RX
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
MSI PRO B550M-P WIFI6E, AMD B550, AM4, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6E, 1Gb LAN, USB Type-C.
$182.99
