PANORAMA 2×2 MiMo Wideband Cellular LTE antenna, 9dBi, Wall or Mast mounted700-3800MHz for 2G/3G/4G/5G LTE IP65 rated housing

$232.99

$232.99 $242.99

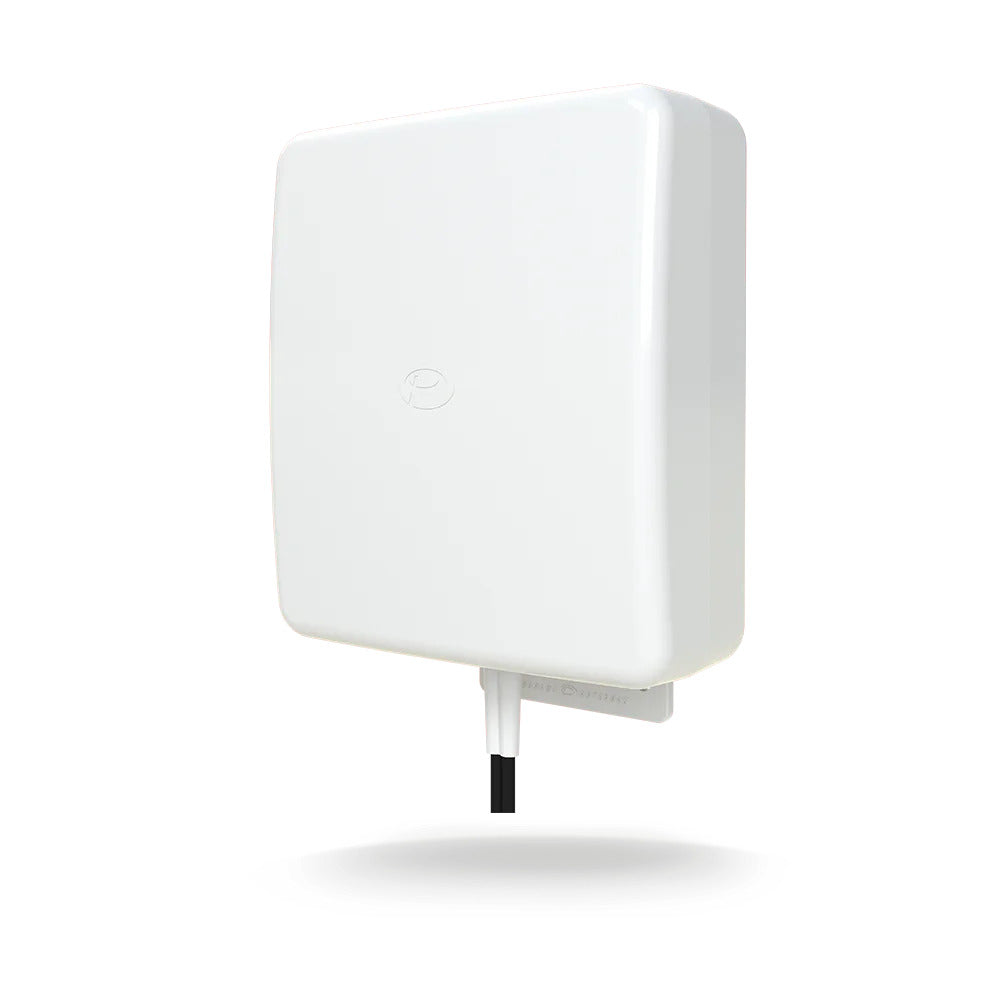

PANORAMA 2×2 MiMo Wideband Cellular LTE antenna, 9dBi, Wall or Mast mounted700-3800MHz for 2G/3G/4G/5G LTE IP65 rated housing The WMM8G-7-38 antenna is a high gain directional 2×2 MIMO signal boosting antenna for 4G/5G LTE. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client-side MIMO and diversity support for 4G/5G LTE. The rugged, weatherproof housing is designed for wall mounting. Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation. The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands. Cradlepoint Approved for S700, IBR600, E100/ E102 Series Pattern Directional Max Input Power(W) 20 Frequency Range | Gain 698 – 960MHz | 6dBi; 1710 – 2170MHz | 9dBi; 2396 – 2700MHz | 9dBi; 3400 – 3800MHz | 9dBi Cellular LTE Elements 2 x 2 MIMO WIFI Elements No UHF Elements No Number of GPS Elements No Colour White Operating Temperature -45°/ +80°C (-49.0°/ +176.0°F) Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable Type (LTE) CS29 Connector (LTE) N (f); SMA (m) Mounting Type Fixed Desk; Mast; Wall Mounting Methods Desk; Mast; Wall IP Rating IP65 Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722 Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G

PANORAMA

PANORAMA 2×2 MiMo Wideband Cellular LTE antenna, 9dBi, Wall or Mast mounted700-3800MHz for 2G/3G/4G/5G LTE IP65 rated housing

Name: PANORAMA 2×2 MiMo Wideband Cellular LTE antenna, 9dBi, Wall or Mast mounted700-3800MHz for 2G/3G/4G/5G LTE IP65 rated housing
Brand: PANORAMA
SKU: NHP-WMM8G-7-38-5SP
Price: 232.99 AUD
Availability: OutOfStock
