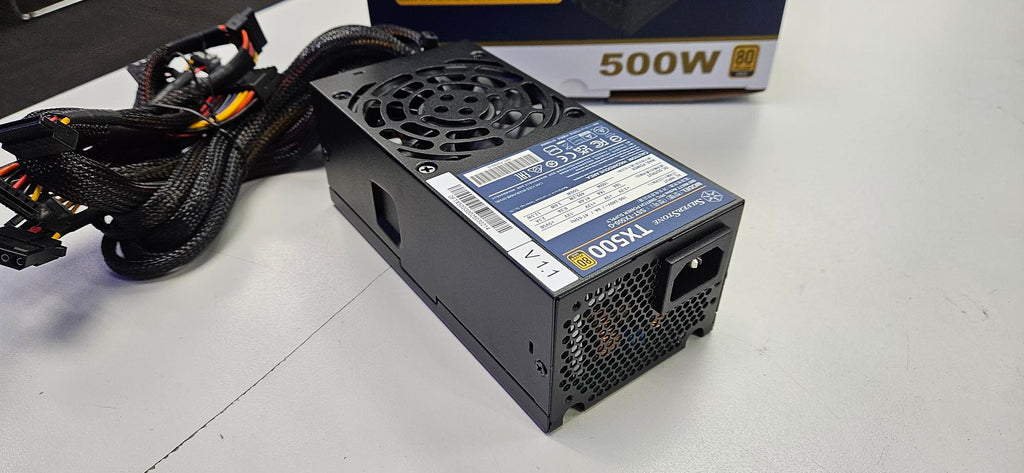

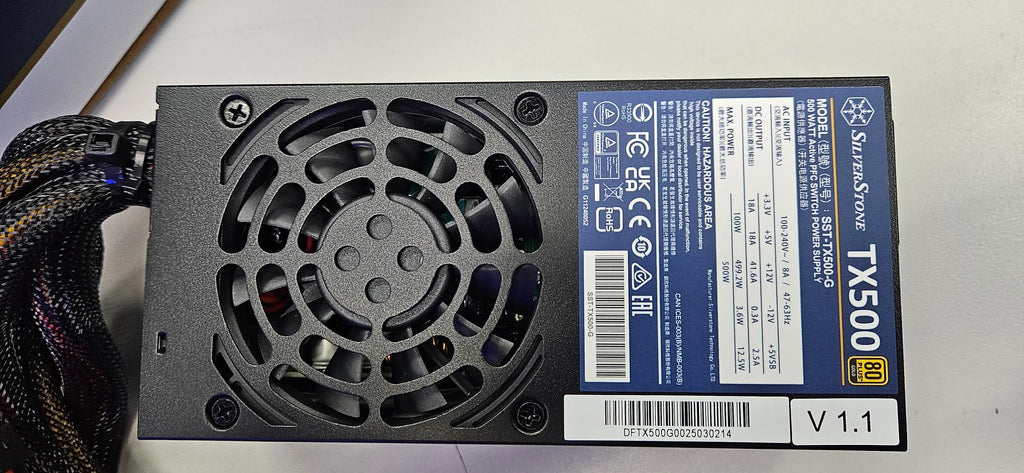

Silverstone 80 PLUS Gold 500W TFX power supply
Sale price
$223.99
Regular price $244.99
Skip to product information
Product No.
SST-TX500-G
Model (safety certification)
SST-TX500-G
Color
black (lead-free paint)
Max. DC Output
500W
Power density
517W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 18A 18A 41.6A 2.5A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
100W
Combined +12V
499.2W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0 ~ 50°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (350mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (450mm)
2 x 8 / 6-Pin PCIE connector (350mm / 150mm)
4 x SATA connector ("350mm / 150mm" x 2)
2 x 4-Pin Peripheral connector (350mm / 150mm)
2 x 4-Pin Peripheral and 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)
Cooling System
Single 80mm silent HYB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
TFX
Dimension
85mm (W) x 65mm (H) x 175mm (D)
Weight
1.38 kg
Other
GPU Support list
