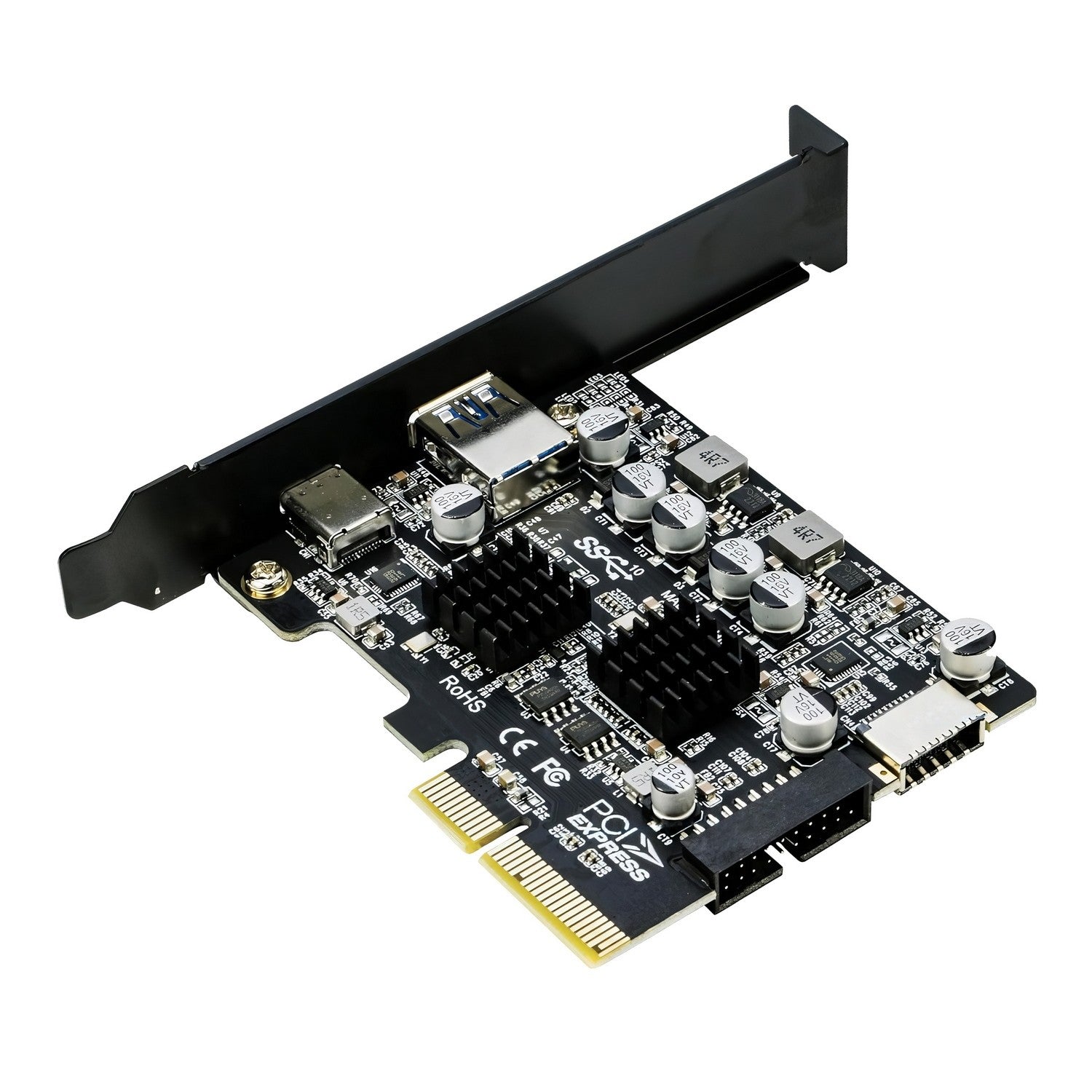

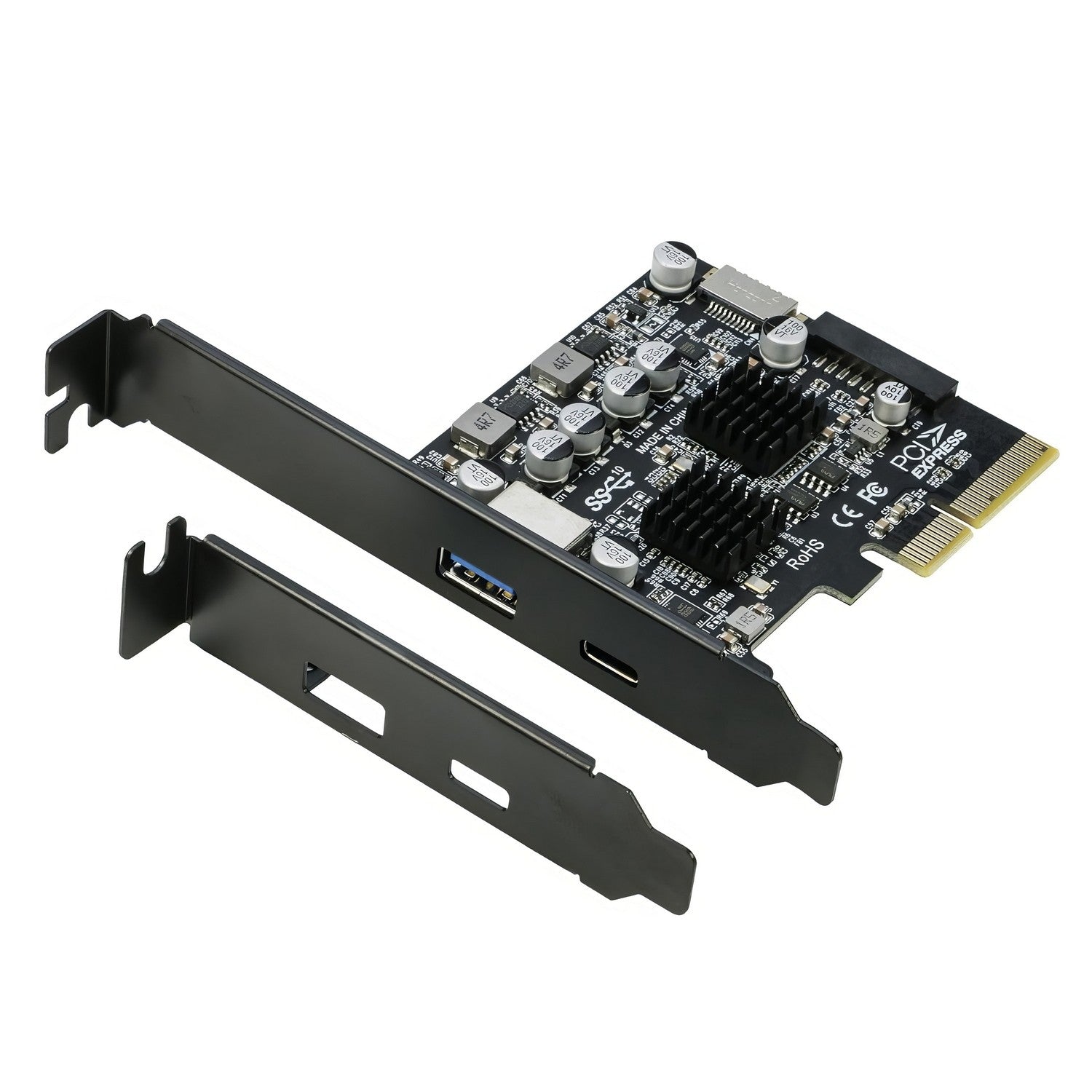

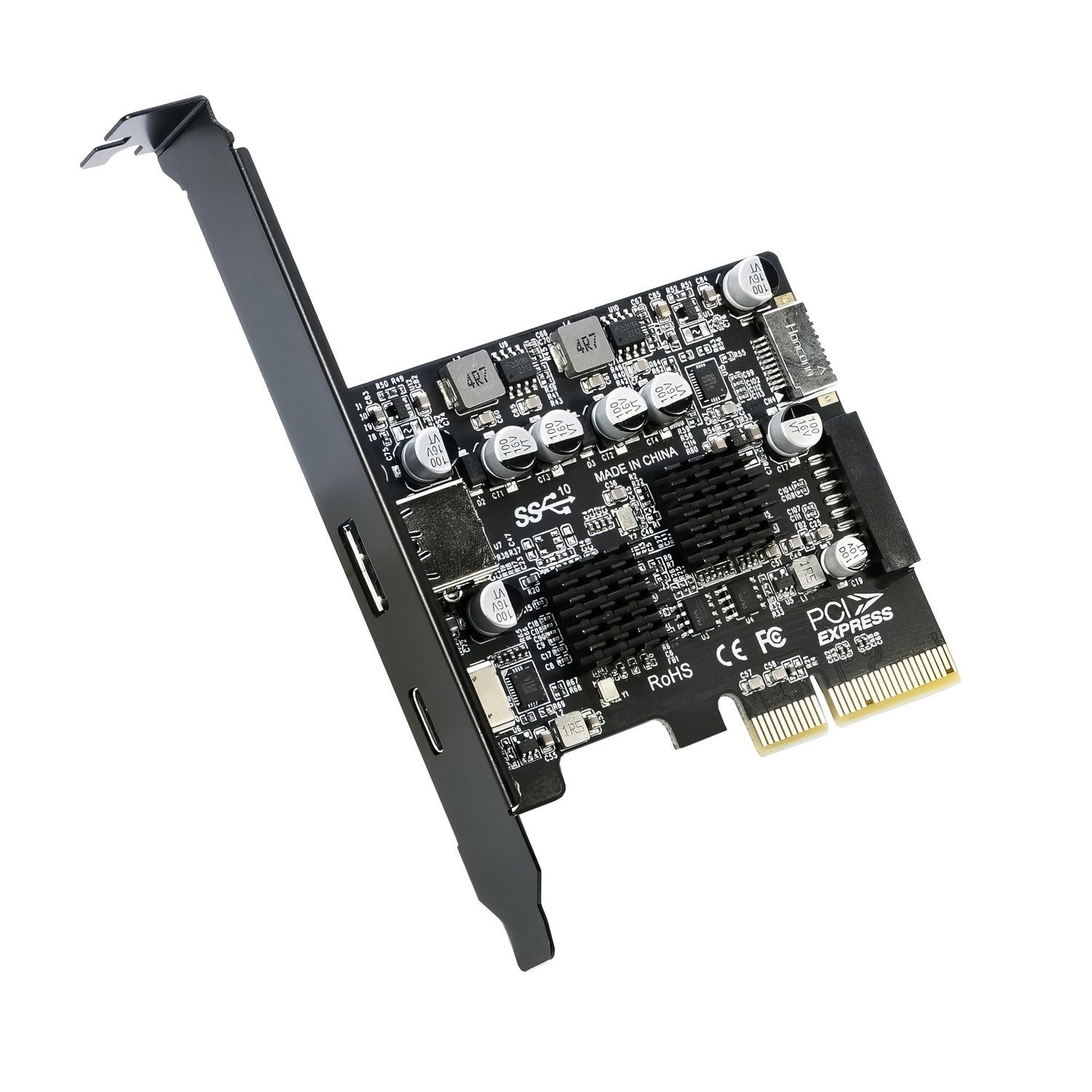

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 1

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

$46.99
$46.99 $44.55
Skip to product information
Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 1
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 1
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 2
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 3
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 4
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 5
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 1
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 2
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 3
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 4
  • Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card - Image 5
Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

$46.99
$46.99 $44.55

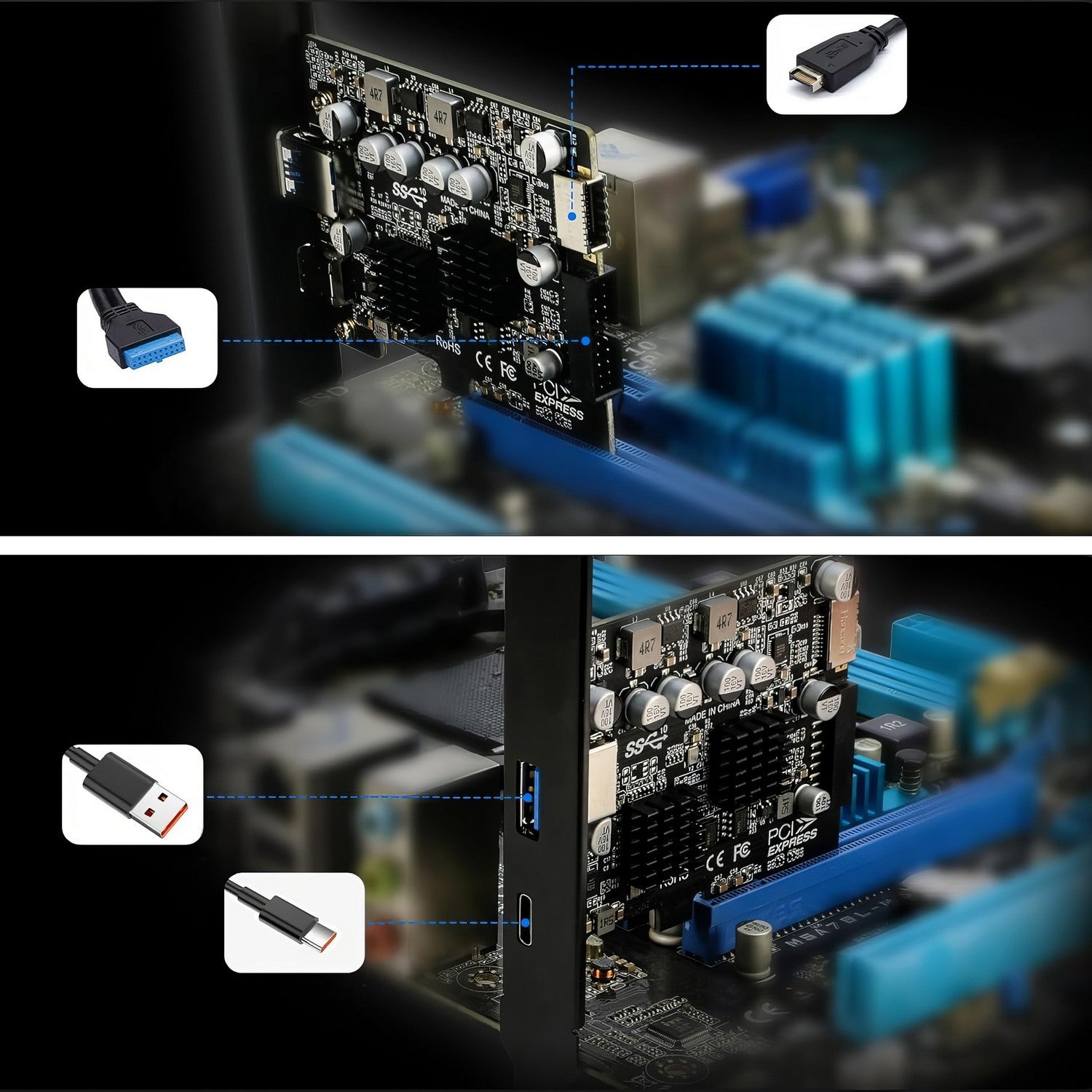

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card Quick Overview - PCIe x4 expansion card, also compatible PCIe x8 or x16 slot - USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps - Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller - The USB ports on the rear panel and front panel can operate simultaneously - Two rear panel connectors, 1x USB-C and 1x USB-A port - Two internal connectors for front panel, USB 3.0 19/20-Pin and Key-A (Type-E) connectors - Backwards compatible with USB 2.0 and USB 1.1 devices - Built-in over current protection on each USB port - Powered by PCIe, no external power required - Built-in PCIe 12V to 5V modules provide power to USB ports - Plug and play, automatic installation on Windows Specifications PCIe Interface: PCIe 3.0 x4, compatible PCIe x8 or x16 slot USB Standard: USB 3.2 Gen 2 10Gbps Rear Panel Connectors: 1x USB-A, 1x USB-C Internal Connectors for Front Panel: 1x USB 3.0 19/20Pin socket (Front USB-A), 1x Key-A (Type-E) connector (Front USB-C) USB Speed Support: SuperSpeed+ (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps) USB Power Source: Integrated PCIe 12V to 5V module Operating System Support: Windows 7 and above Package Contents 1x USB 3.2 Gen 2 Expansion Card 1x Low Profile Bracket System Requirement 1x available PCle 3.0 or higher x4/x8/x16 slot on motherboard, please note PCIe 1.0 or 2.0 x4 slot bandwidth is lower than 10Gbps Plug and play for Windows 8 and above operating system, Windows 7 system need to install driver
Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card
Simplecom

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

★ ★ ★ ★ ☆ 4.8 (1,234 reviews)
$46.99
In Stock Ships within 1 business day
Estimated delivery by state
NSW 1–2 business days
VIC 1–2 business days
ACT 1–2 business days
QLD 2–3 business days
SA 2–4 business days
WA 3–5 business days
TAS 3–5 business days
NT 4–6 business days

Dispatched from Sydney. Express available at checkout.

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card Quick Overview - PCIe x4 expansion card, also compatible PCIe x8...
Wi-Fi
802.11ax
Speed
1 Gbps WAN
Ports
8x Gigabit
Buy Now
Free Shipping
Orders over $100
2 Year Warranty
Full coverage
30-Day Returns
No questions
Technical Specifications
Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card Quick Overview - PCIe x4 expansion card, also compatible PCIe x8 or x16 slot - USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps - Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller - The USB ports on the rear panel and front panel can operate simultaneously - Two rear panel connectors, 1x USB-C and 1x USB-A port - Two internal connectors for front panel, USB 3.0 19/20-Pin and Key-A (Type-E) connectors - Backwards compatible with USB 2.0 and USB 1.1 devices - Built-in over current protection on each USB port - Powered by PCIe, no external power required - Built-in PCIe 12V to 5V modules provide power to USB ports - Plug and play, automatic installation on Windows Specifications PCIe Interface: PCIe 3.0 x4, compatible PCIe x8 or x16 slot USB Standard: USB 3.2 Gen 2 10Gbps Rear Panel Connectors: 1x USB-A, 1x USB-C Internal Connectors for Front Panel: 1x USB 3.0 19/20Pin socket (Front USB-A), 1x Key-A (Type-E) connector (Front USB-C) USB Speed Support: SuperSpeed+ (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps) USB Power Source: Integrated PCIe 12V to 5V module Operating System Support: Windows 7 and above Package Contents 1x USB 3.2 Gen 2 Expansion Card 1x Low Profile Bracket System Requirement 1x available PCle 3.0 or higher x4/x8/x16 slot on motherboard, please note PCIe 1.0 or 2.0 x4 slot bandwidth is lower than 10Gbps Plug and play for Windows 8 and above operating system, Windows 7 system need to install driver
