Simplecom SA539 USB to M.2/SATA/IDE 3-IN-1 Adapter for 2.5"/3.5" HDD & NVMe M.2 SSD with Power Supply
SA539 is a 3-in-1 USB adapter that provides a convenient solution for transferring data from NVMe M.2 SSDs, SATA drives, and legacy IDE hard drives. Featuring dedicated SATA, IDE, and M.2 interfaces, it supports a wide range of storage devices, making it ideal for data recovery, backup, cloning, and drive testing applications.
The USB-C host interface complies with the USB 3.2 Gen 2 standard and supports data transfer rates of up to 10Gbps, enabling fast and efficient file access. Multi-LUN support allows connected M.2, SATA, and IDE devices to be recognized independently by the operating system, enabling simultaneous access to multiple drives with separate drive letters.
An included external power adapter provides reliable operation for 3.5" hard drives, while the built-in IDE power connector allows easy connection of IDE devices. Plug-and-play with no drivers required, simply connect and start using your drives instantly. The integrated On/Off switch provides safe power control, and LED indicators clearly display power and drive activity status.
FEATURES
•3-in-1 USB adapter featuring SATA, IDE and M.2 interfaces
•Provides flexible connectivity for a wide range of storage devices
•Compatible with NVMe M.2 SSDs, 2.5"/3.5" SATA drives, and 3.5" IDE drives
•Supports multi-LUN (logical unit number), each port has a separate drive letter
•Allows simultaneous access to M.2, SATA and IDE devices
•USB-C host interface compliant with the USB 3.2 Gen 2 standard
•Supports data transfer rates up to 10Gbps
•Supplied with an external power adapter for 3.5" hard drive operation
•Built-in IDE power connector for convenient connection of 3.5" IDE drives
•On/Off power switch for safe and convenient power control
•LED indicators display power and drive activity status
•Plug-and-play setup with no drivers required
SPECIFICATIONS
Model: SA539
Housing Material: ABS plastic
Host Interface: USB-C (USB 3.2 Gen 2)
Drive Interfaces: 1× SATA, 1× 3.5" IDE, 1× M.2 (for NVMe SSD only)
Data Transfer Rate: up to 10Gbps
Multi-LUN Support: Yes (each port has a separate drive letter)
Power Input: DC 12V / 3A
Supported Drives: 3.5" IDE HDDs, 2.5"/3.5" SATA HDDs or SSDs, 5.25" SATA/IDE optical drives, NVMe M.2 SSDs
Dimensions: 10.2 × 7.6 × 1.6 cm (L × W × H)
Weight: approx. 63g
Operating System Support: Windows 7 or later, macOS 10.8 or later, Linux
Package Contents

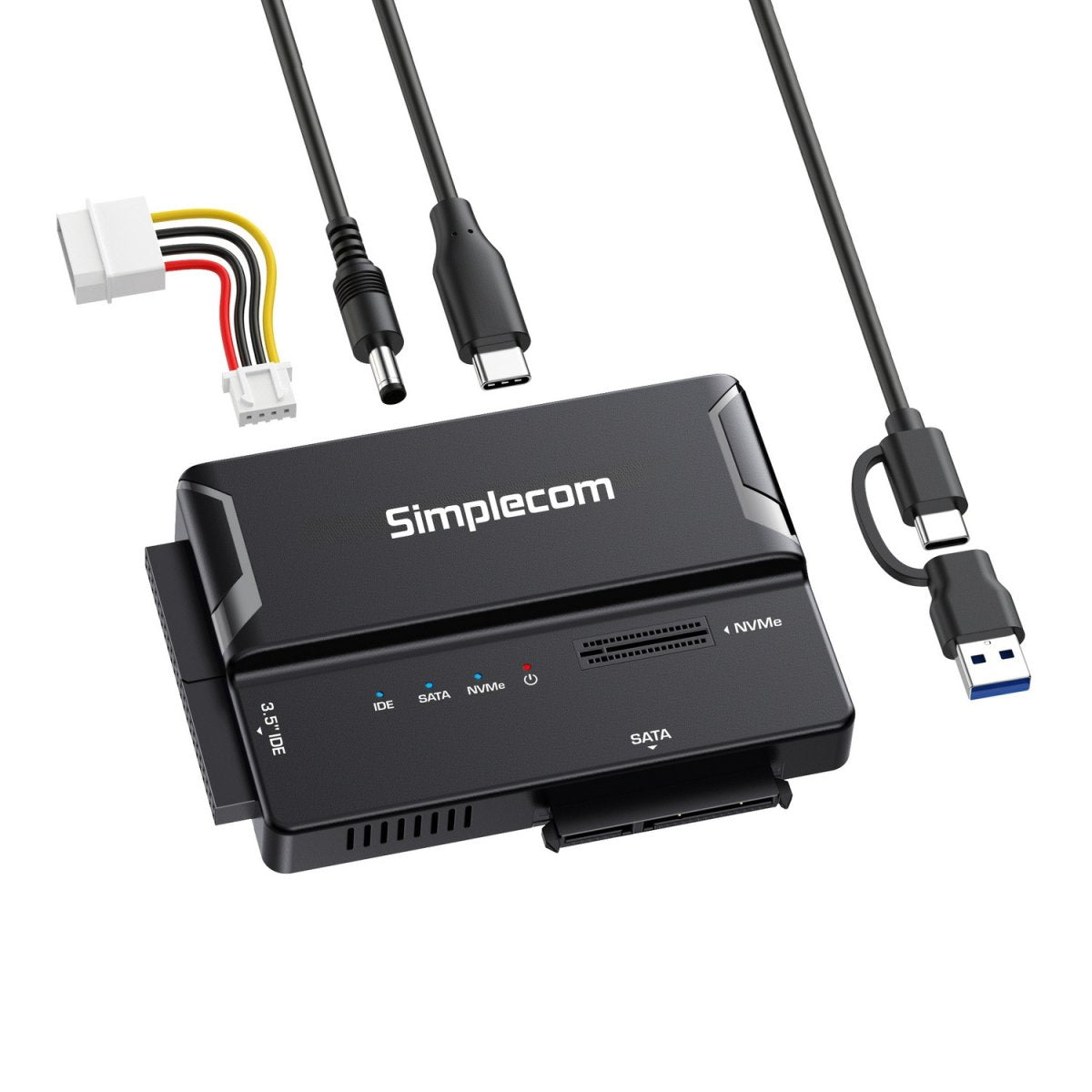

1x SA539 USB-C to M.2/SATA/IDE Adapter
1x USB-C + USB-A combo cable
1x IDE 4-pin power cable
1x Power Adapter (12V 3A)
Important Notes
M.2 slot supports NVMe SSDs only. SATA M.2 SSDs are not supported.
Please connect the external power adapter when using 3.5" SATA or IDE hard drives.
Ensure the On/Off switch is set to OFF before connecting a drive. Hot-swapping may damage the drive or cause an electric shock.
