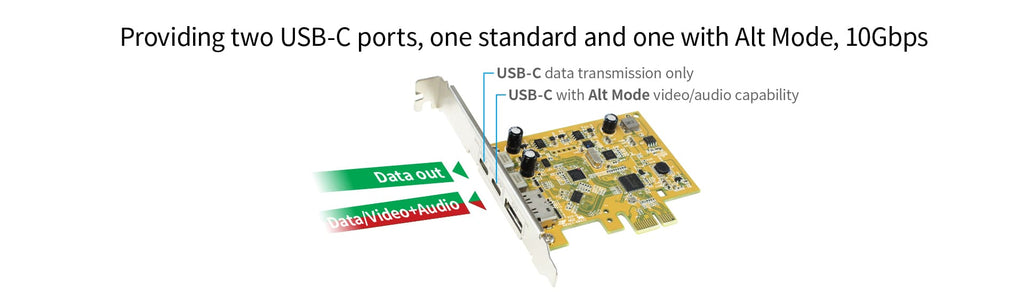

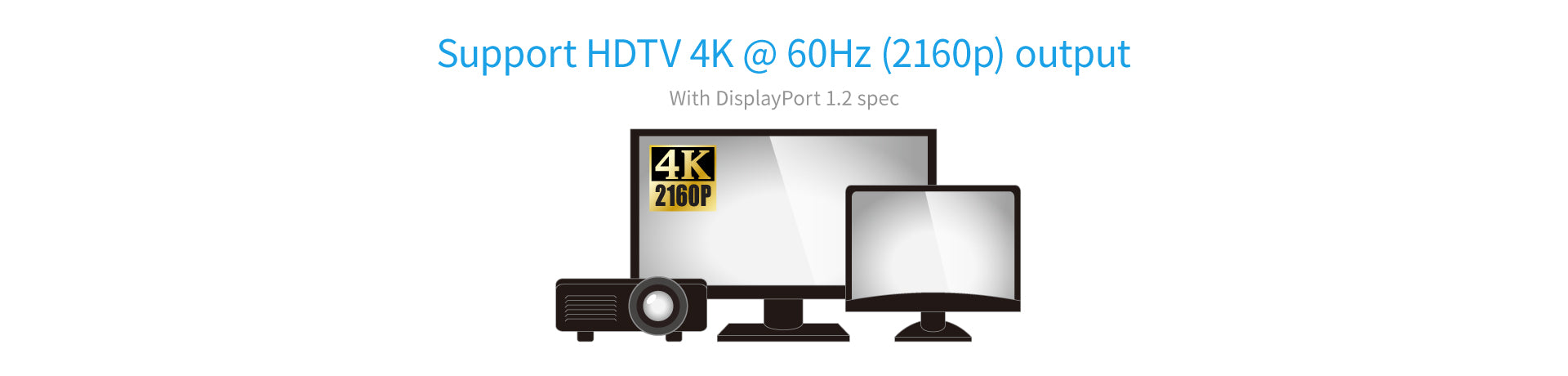

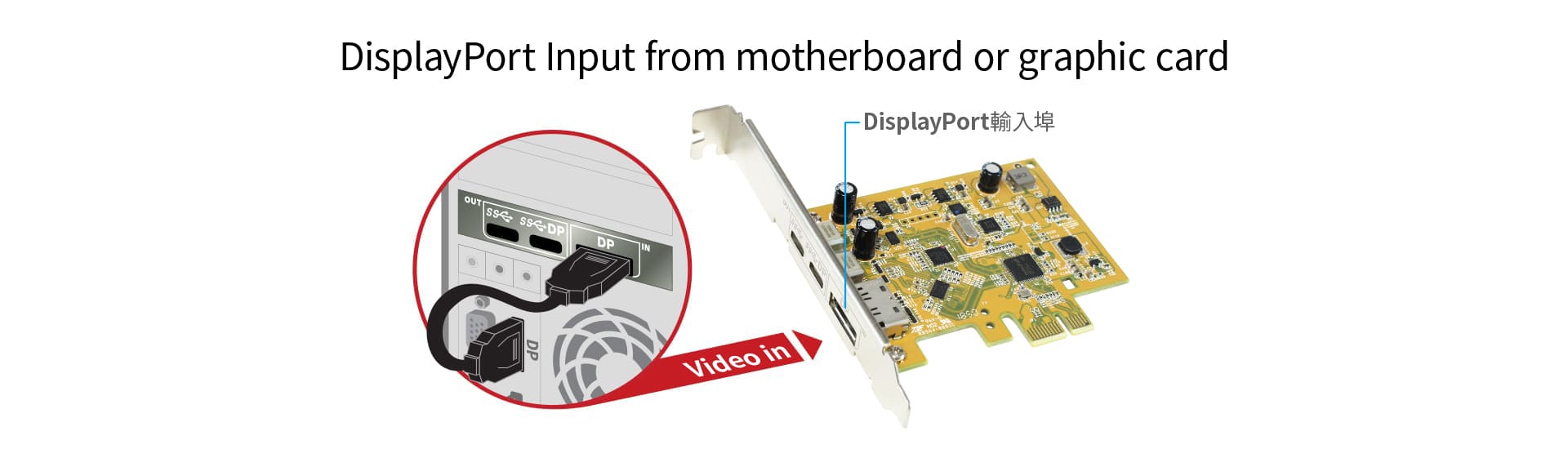

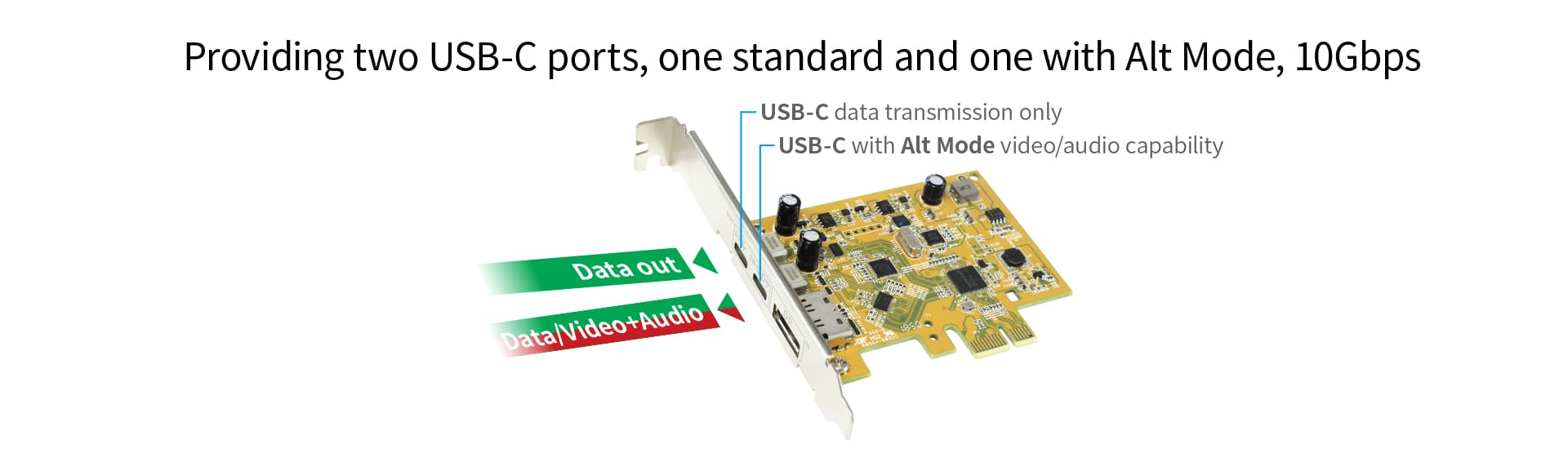

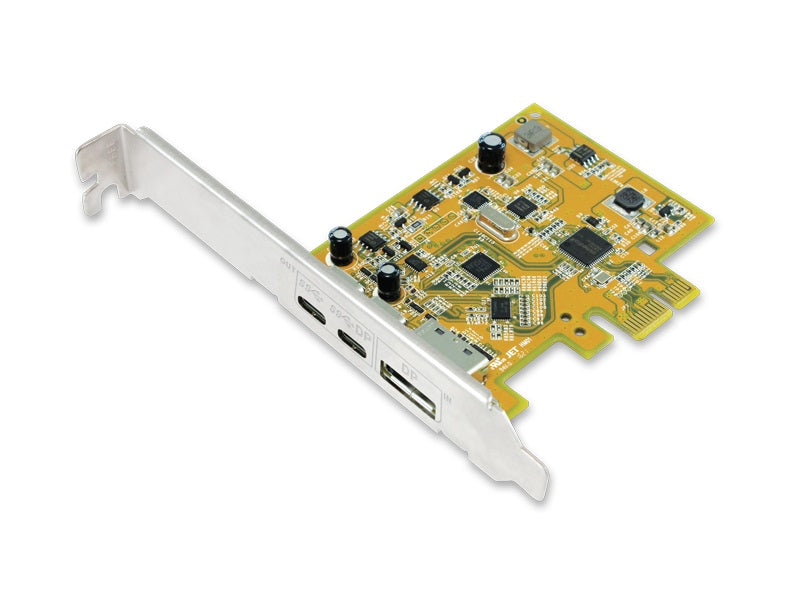

Sunix USB 3.1 10G & DisplayPort Alt- Featurs: PCI Express Base Specification Revision 3.0 single-lane (x1). Expands dual external USB3.1 Super-Speed plus Type-C port (DFP) on the system. Compliant with Universal Serial Bus 3.1 specification Gen2. Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1. Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps. Specifications Hardware BUS PCI Express Spec 3.0, Single-Lane (x1) Controller PCI Express USB 3.1 Host controller, Asmedia ASM1142 USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1 IRQ & IO Assigned by System USB Communication Interface Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1 Speed SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps) No. of Port 2-port PCB Connector USB 3.1 USB Type-C port (Downstream Facing Port) Protection ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge Video / Audio Input Interface Standard DisplayPort Female, DisplayPort Ver1.2/1.1 Output Interface USB Type-C port Audio Yes (audio pass-through) Power Source PCI Express Bus Power Output Capacity USB Type-C Port: Power Delivery +5VDC / 1.5A / each port Note: Total power output capacity will be limited by system power supply. Over Current Protection USB Type-C Port: +5VDC / 1.5A / each port / Power Switch Power Consumption 3.0W @ 3.3V (board only without power output to USB device) Driver Support Windows Windows 7 (X86/X64) Windows 8.x / 10 (X86/X64) (Windows in-box driver) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 70°C (-4 to 158°F) Regulatory Approvals EMC CE, FCC, VCCI, BSMI Green RoHS, CRoHS, WEEE Physical Characteristics PCB Dimension 85.30x 55.75 mm Bracket Standard 120 mm (Low Profile 80mm) Bracket Space 1
