Technical Specifications

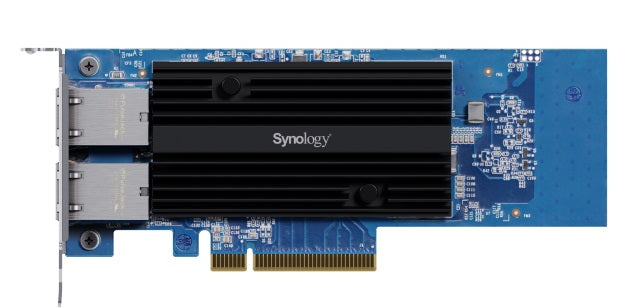

Synology E10G30-T2 10Gbe Dual-port 10GbE 10GBASE-T add-in card for Synology systems
Hardware Specifications
General
Host Bus Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 68.9 mm x 167.7 mm x 14.7 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Network
IEEE Specification Compliance
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates 10 Gbps/1 Gbps
Supported Features
TCP Segmentation Offload (TSO)
Receive Side Scaling (RSS)
Generic Segmentation Offload (GSO)
1.5 - 9 KB Jumbo Frame
TCP/UDP Checksum Offload
Transmit side scaling (TSS)
SR-IOV
Large receive offload (LRO)
Compatibility
Applied Models
FS series:FS6400, FS3600, FS3410, FS3400, FS2500
HD series:HD6500
SA series:SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
UC series:UC3400, UC3200
23 series:RS2423RP+, RS2423+, DS1823xs+
22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
20 series:RS820RP+, RS820+
19 series:RS1619xs+, DS2419+II, DS2419+, DS1819+
18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+
17 series:DS3617xs
