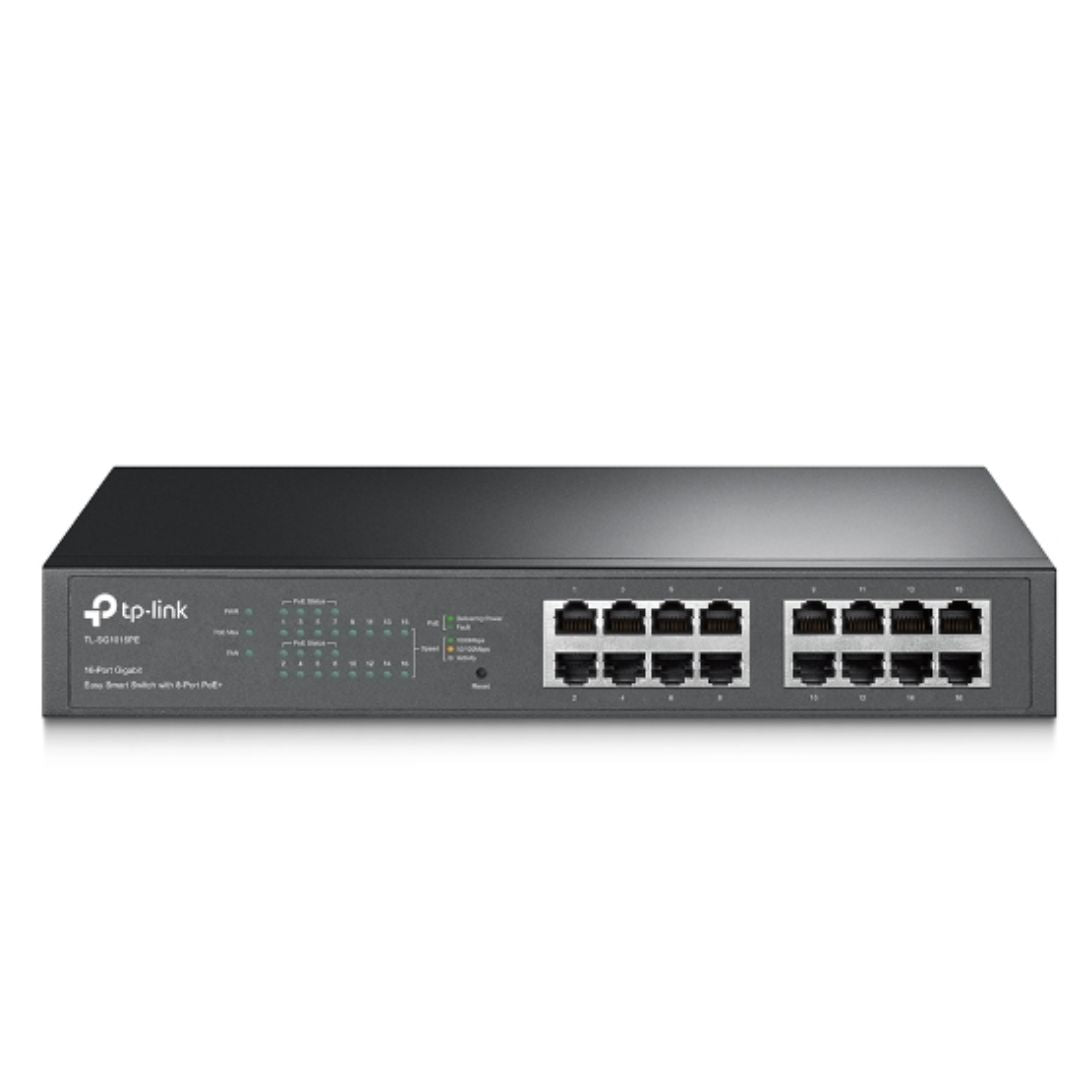

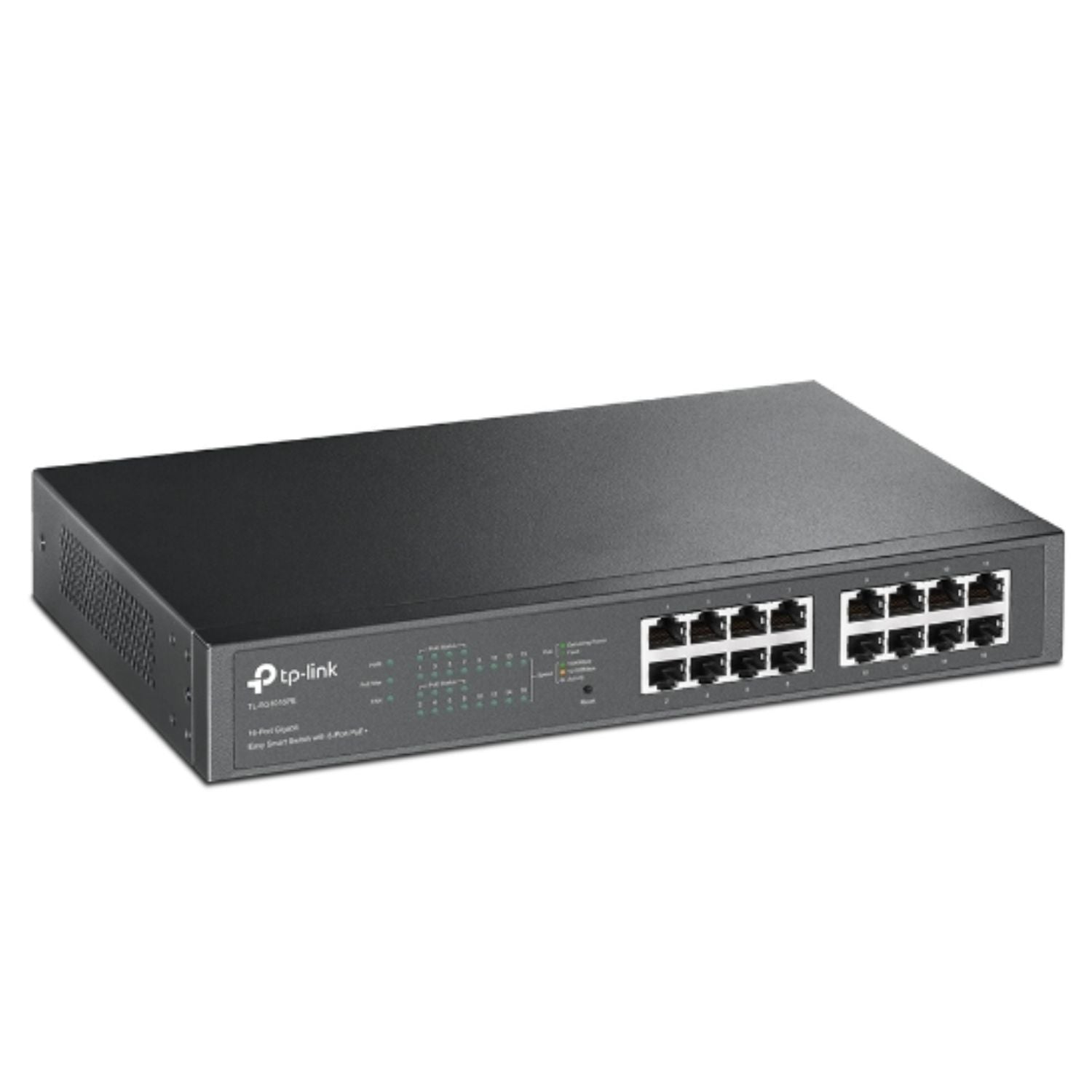

16-Port Gigabit Easy Smart Switch with 8-Port PoE+ 16 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ supported ports to transfer data and power over a single cable Works with IEEE 802.3af/at compliant devices, expanding home and office networks Innovative energy-efficient technology reduces power output by up to 75%* Plug and play design, no configuration required *Actual data may vary in different usage environment. HARDWARE FEATURES Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Power Supply 100-240VAC, 50/60Hz Power Consumption Maximum (PoE on): 124.4W (220V/50Hz) Maximum (PoE off): 14.4W (220V/50Hz) PoE+ Ports(RJ45) 8 Ports Backbound Bandwidth 32 Gbps Mac Address Table 8K Buffer Size 1.5 Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) SOFTWARE FEATURES Transfer Method Store-And-Forward Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet Consumption 9.5 watts (max. no PD connected) 140.1 watts (max. with 126w PD connected) Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
